Wuhan Chenyun Technology Co., Ltd
Production Information
| Brand Name | yigu | |||
| product model | YGY-FSXY1 |
|||
| product name | Online wind speed and direction indicator | |||
| product material |
Online wind speed and direction indicator |
Triangle bracket: stainless steel |
Pole bracket: galvanized |
Bracket cross arm: aluminum alloy |
| Product size | 33 * 33 * 33cm (standard outer box) | |||
| Net weight | 2kg (standard) | |||
| protection grade | IP65 |
|||

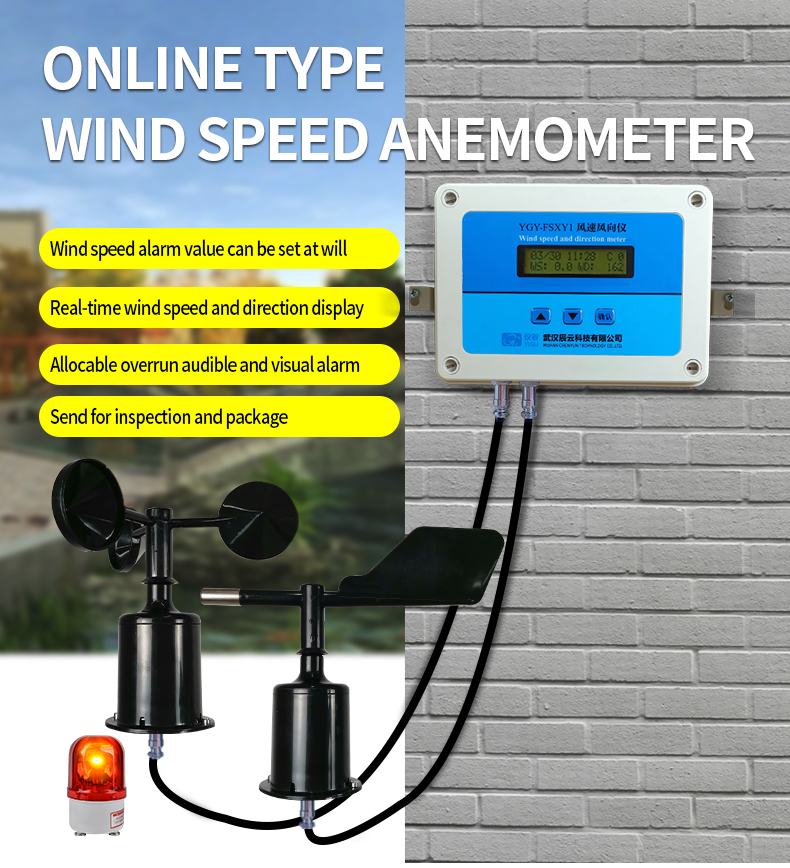

YGY-FSXY1 anemometer is a meteorological instrument used to measure and record wind speed and direction in the atmosphere. This instrument uses a high-definition LCD display to show the current date, time, wind speed, and direction values; The built-in large capacity FLASH storage chip can automatically store meteorological data for at least one year.
The instrument can be configured with multiple communication interfaces (RS232/RS485/USB/RJ45/GPRS) to communicate with a computer. Real time wind speed and direction can be observed through the accompanying meteorological station software. Users can use the meteorological station software to record, analyze, store, and export meteorological data.
Application areas: This instrument can be widely used in meteorology, agriculture and forestry, environmental protection, oceanography, airports, ports, scientific research, campus education and other fields.
Functional Features
● High definition character LCD display screen with low-power backlight, user-friendly interface, and simple button operation;
● High measurement accuracy of wind speed and direction, stable and reliable system;
● Large capacity data storage, capable of storing up to 57344 meteorological data (data recording intervals can be set between 1-240 minutes);
● Standard RS232 interface, multiple communication interfaces (RS485/RJ45/WIFI) can be selected according to needs;
● Powerful automatic weather station software, convenient for remote monitoring and processing and analysis of meteorological data;
● The structural design is scientifically reasonable and easy to install;
Technical Parameter
| Power Supply | Supplied using an AC220V to DC12V adapter, with optional DC5V or DC24V power supply | |
| Measuring Range | Wind Speed: 0–70 m/s | Wind Direction: 0–359° |
| Accuracy | Wind Speed: ±(0.5 + 0.02V) m/s (V is the actual wind speed) | Wind Direction：±3° |
| Starting Wind Speed | ≦0.8m/s | |
| Long-Term Stability | Wind Speed:：<0.1m/s/year | Wind Direction：1°/year |
| Internal Storage | 4M bit (57344 data entries) | |
| Recording Interval | Adjustable continuously from 1 minute to 240 minutes | |

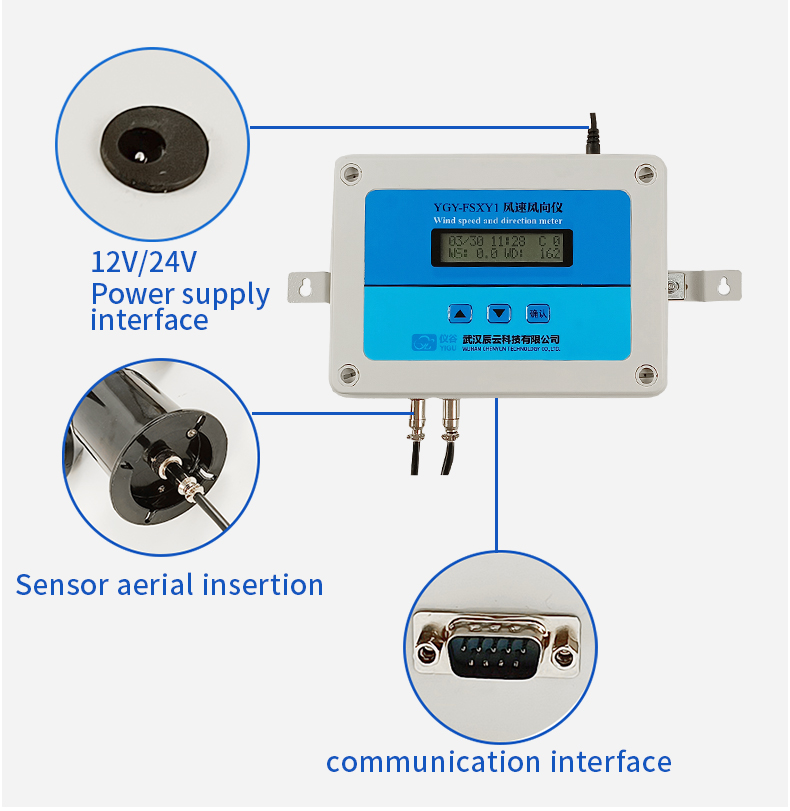

| Communication Methods | RS232 (standard), RS485, USB, RJ45, GPRS, WIFI. | |
| Relay Contact Capacity (optional alarm function) | 10A 250VAC（50/60HZ），10A 30VDC，10A 28VDC | |
| Operating Environment | Temperature: -20°C to 60°C; Humidity: 5% RH–95% RH (non-condensing) | |

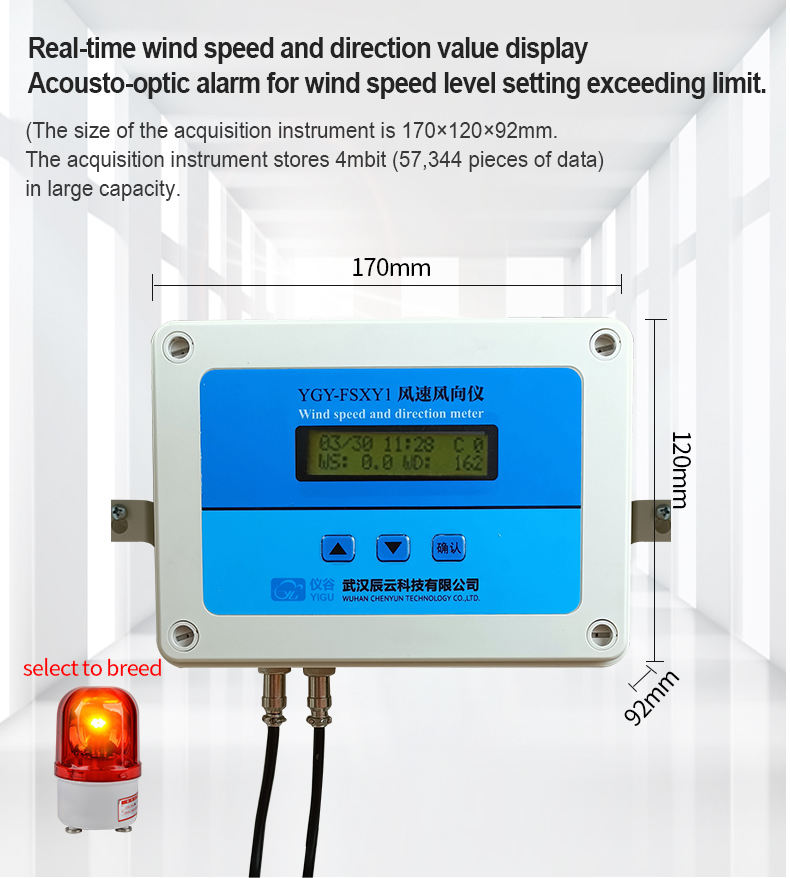

| Collector Dimensions | 170×120×92mm | |
Configuration Description
| category | Configuration selection | Subunit | Technical Parameter | notes |
| sensor | Official standard configuration | Wind speed sensor | Range: 0-70m/s; Resolution: 0.1m/s; Accuracy: ± (0.3 ± 0.03V) m/s |
The default length of the wind speed and direction sensor line is 2.3 meters. Consider whether to extend it according to the actual situation (usually only required when the data acquisition instrument is indoors and the sensor is outdoors, and under normal circumstances, the entire set of sensor and bracket configuration does not require an extension line) |
| Official standard configuration | Wind direction sensor | Range: 0-360 °; Resolution: 1 °; Accuracy: ± 3 ° |
||
| Data acquisition device | Official standard configuration | 2-channel data acquisition device(YGY-FSXY1 plastic shell) | Equipped with 232 and 485 interfaces; Chinese LCD screen with backlight; | |
| software | Official standard configuration | Single machine version software | It can view and store historical data, and export EXCEL data tables, etc. | |
| Optional | IoT software | You can log in and view on any mobile phone or computer with internet access (wireless communication method needs to be selected for implementation) | ||
| power supply system (Choose one of the two) |
Official standard configuration | 220V power supply | AC220V to DC12V adapter power supply | |

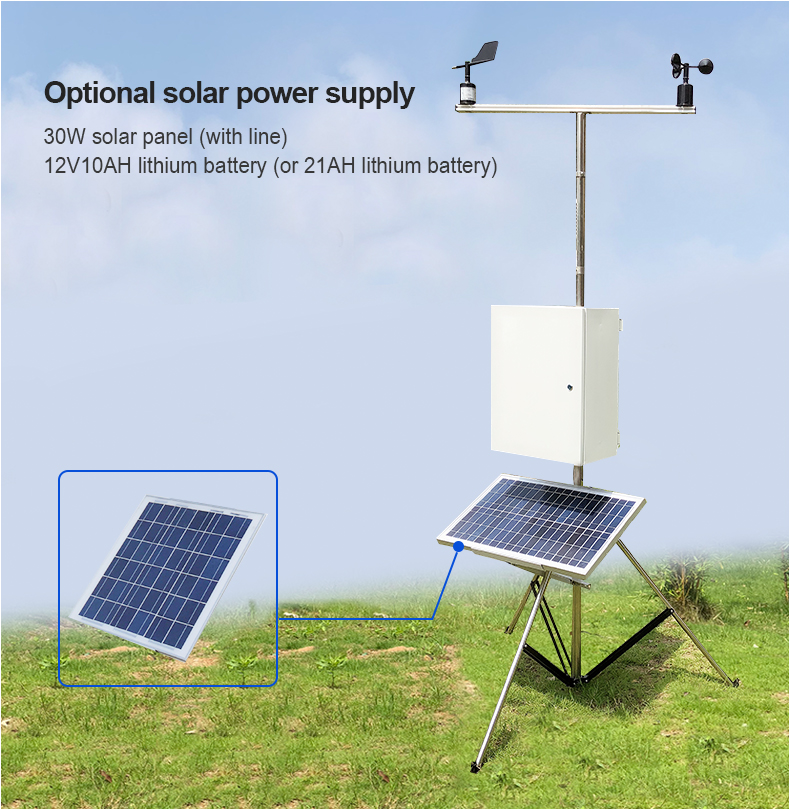

| Optional | Solar power supply system | 10AH lithium battery and 30W solar panel (optional 21AH battery) | ||
| Communication method (Optional) |
Official standard configuration | 232 wired communication | Equipped with USB to 232 data conversion cable and 232 serial port cable | |
| Optional | 485wired communication | Equipped with USB to 485 data conversion cable and 485 communication cable | ||
| Optional | RJ45 | RJ45 Ethernet wired communication interface | ||
| Optional | GPRS wireless transmission module | Includes 1 mobile SIM card and 1 year of data usage fee, with subsequent recharge of 50 yuan/year | ||
| Optional | WIFI | External RS232/485 to WIFI module | ||

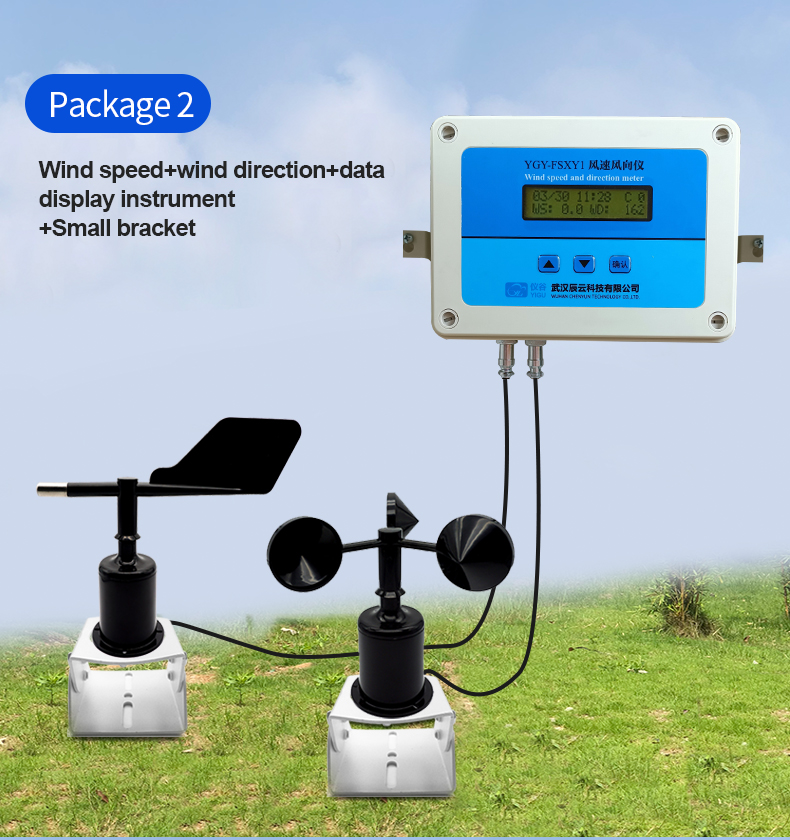

| 支架 | Optional | Optional 30cm or 50cm small bracket | Fixed wind speed and direction sensor | |

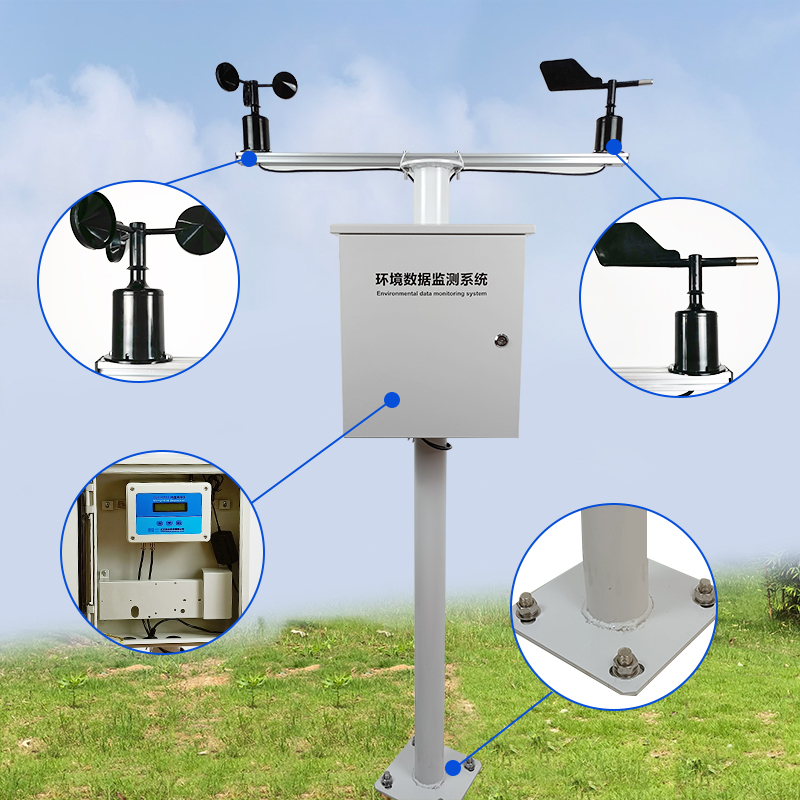

| Optional | 2.5-meter pole bracket with strap | Comes with a crossbeam | ||

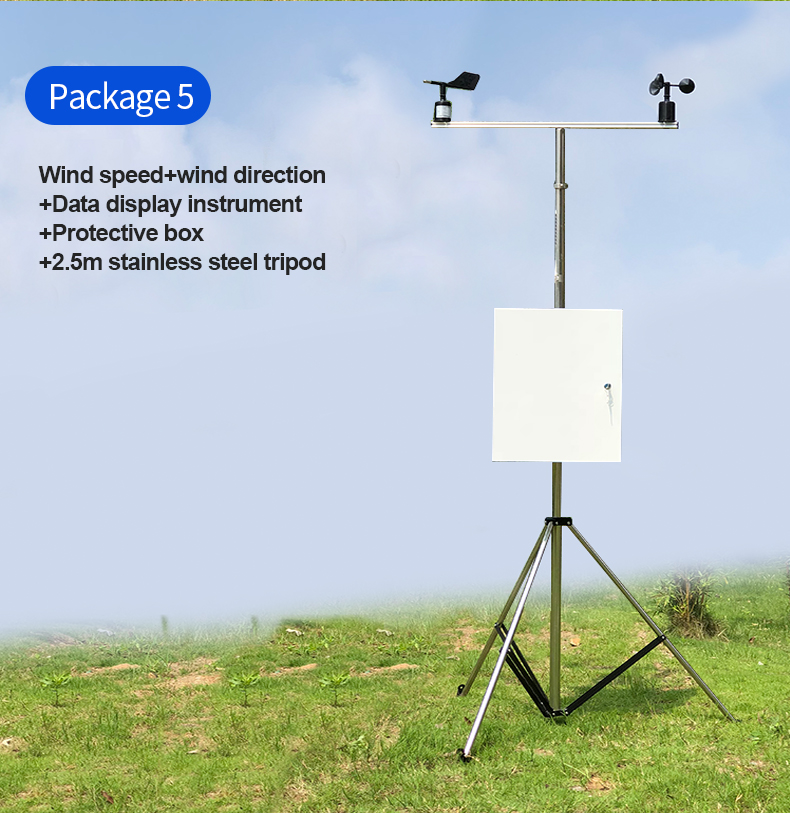

| Optional | 2.5-meter triangular bracket strap | Comes with cross arm, windproof zipper and windproof embedded parts | ||
| 配件 | Optional | Field protective box | One of the following situations must be selected: 1. Solar power supply system; 2. Used for field work of YGY-FSXY1 plastic shell collection instrument; 3. Used for YGY-FSXY1 plastic shell acquisition instrument with GPRS communication or WIFI communication; |
|

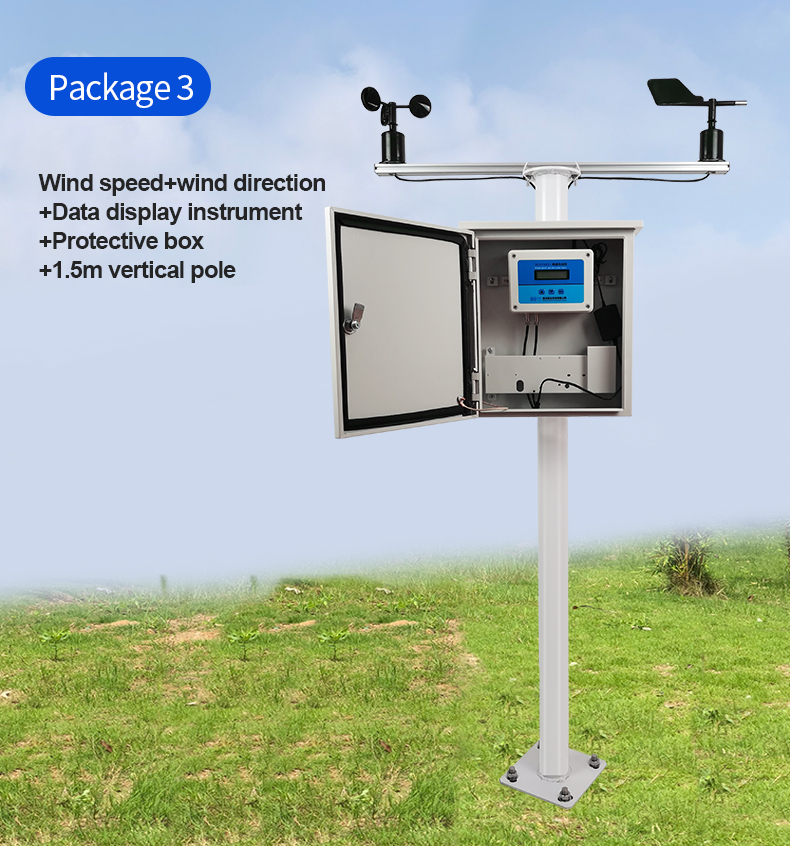

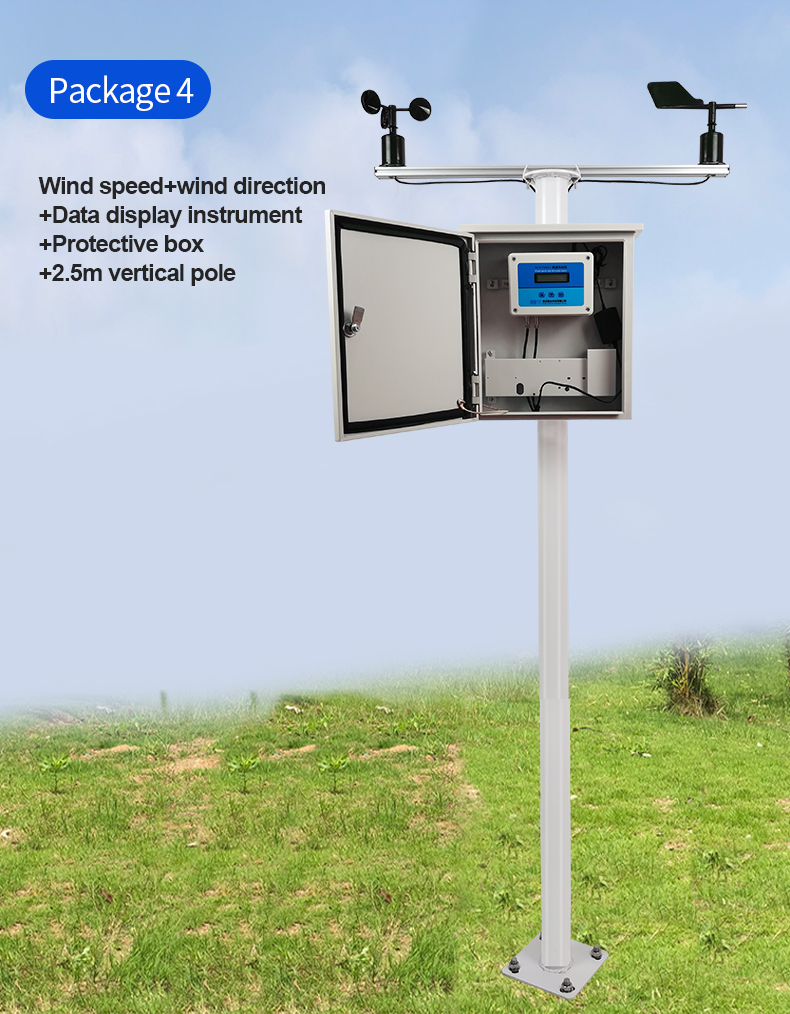

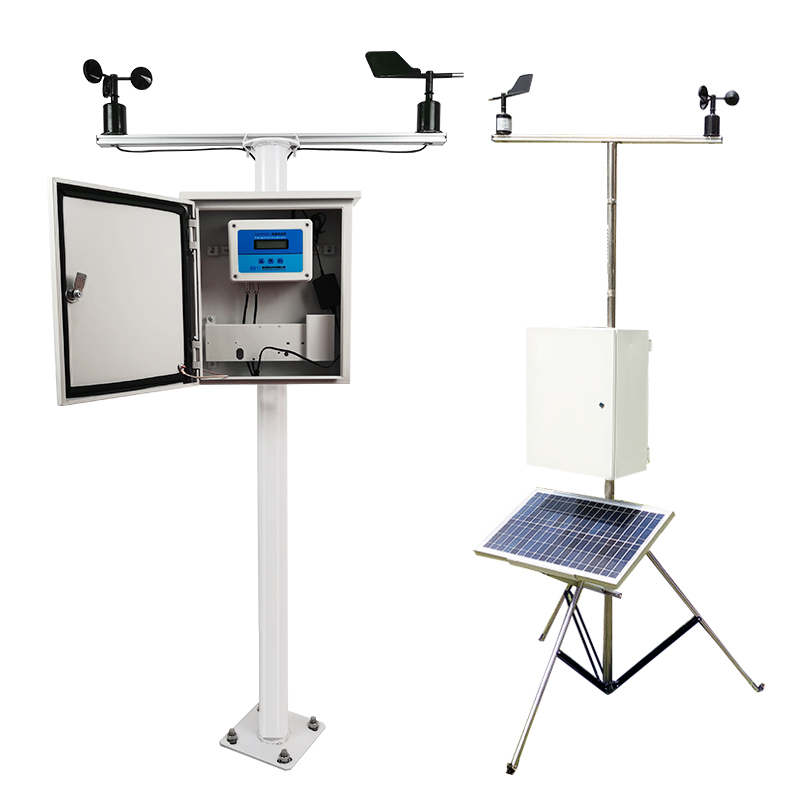

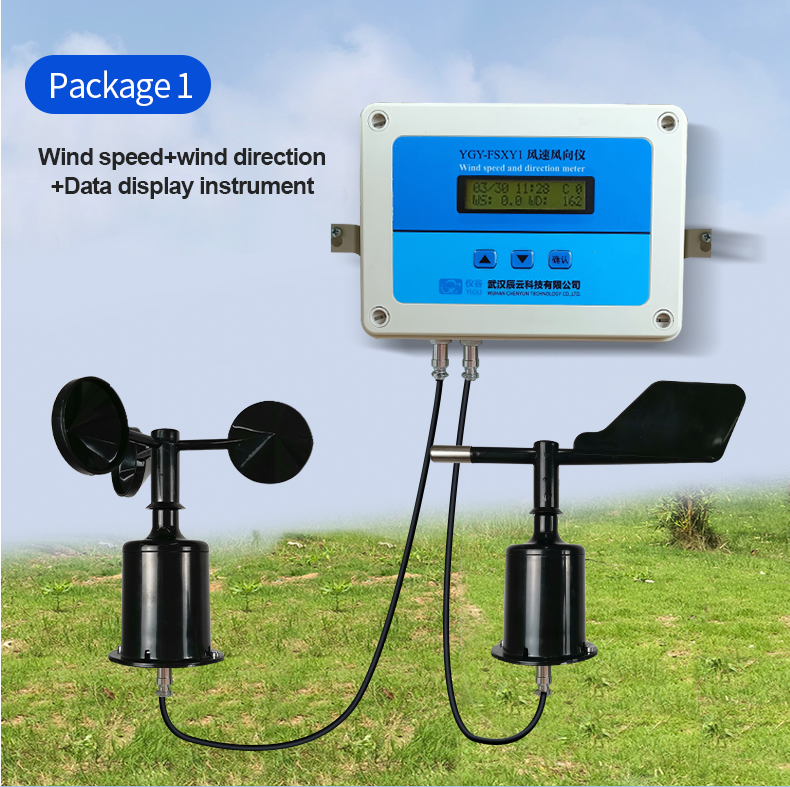

Optional package
Customer selection
Product Details

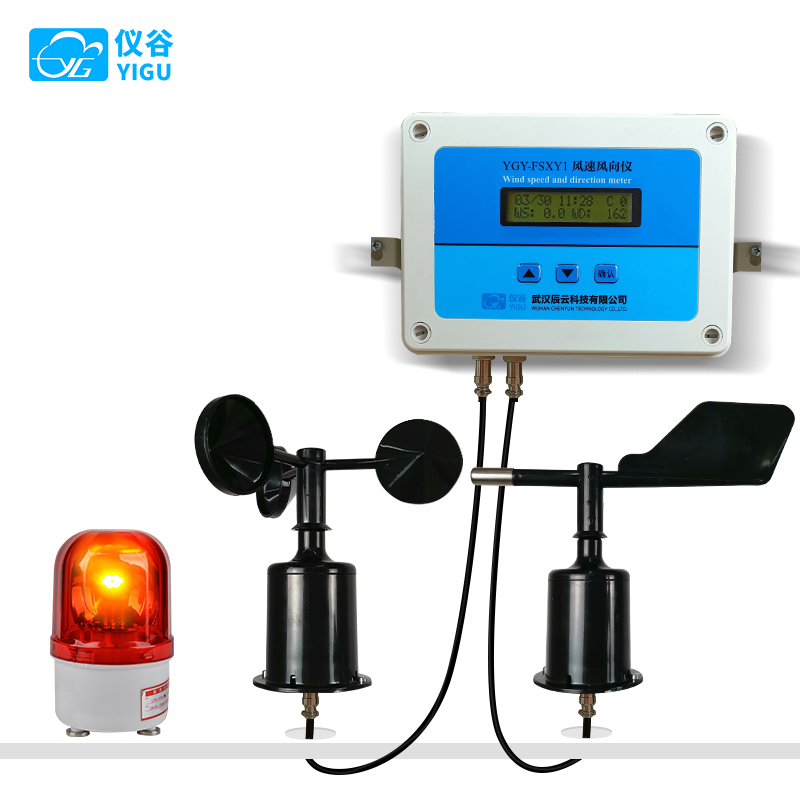

Wind Speed Alarm Function (Optional)
The wind speed alarm function is optional. After configuring this function, when the wind speed reaches the preset value, the relay output terminal of the instrument will close to power other devices, accompanied by a buzzer alarm sound.
The instrument with the wind speed alarm function allows users to set the wind speed alarm value directly on the instrument, as described in Step 5.2. Instruments equipped with this feature have a 2-pin aviation connector interface to connect to the wind speed alarm junction box.
The wind speed alarm junction box contains two wires (J1 and J2) connected to the terminal. If the wind speed does not reach the alarm set value, the J1 and J2 contacts remain open. When the wind speed reaches the alarm set value, the J1 and J2 contacts close, and the buzzer sounds to provide an audible alarm.
Precautions
- Please check if the packaging is intact and verify whether the product model matches the selected model.
- Do not connect wires with the power on. Ensure the wiring is correct before powering on.
- Do not modify factory-soldered components or wires arbitrarily during use.
