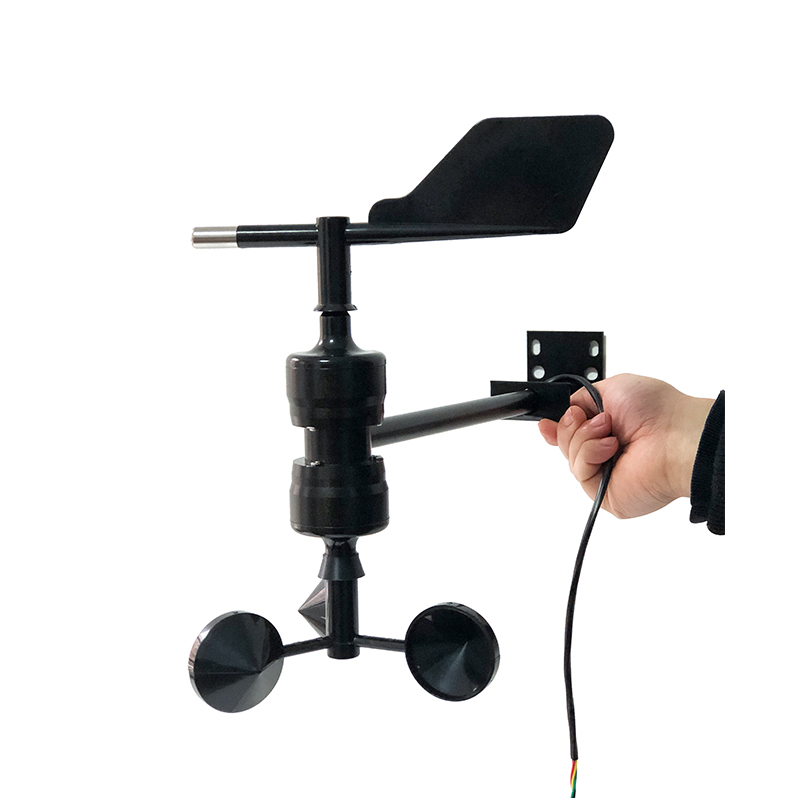

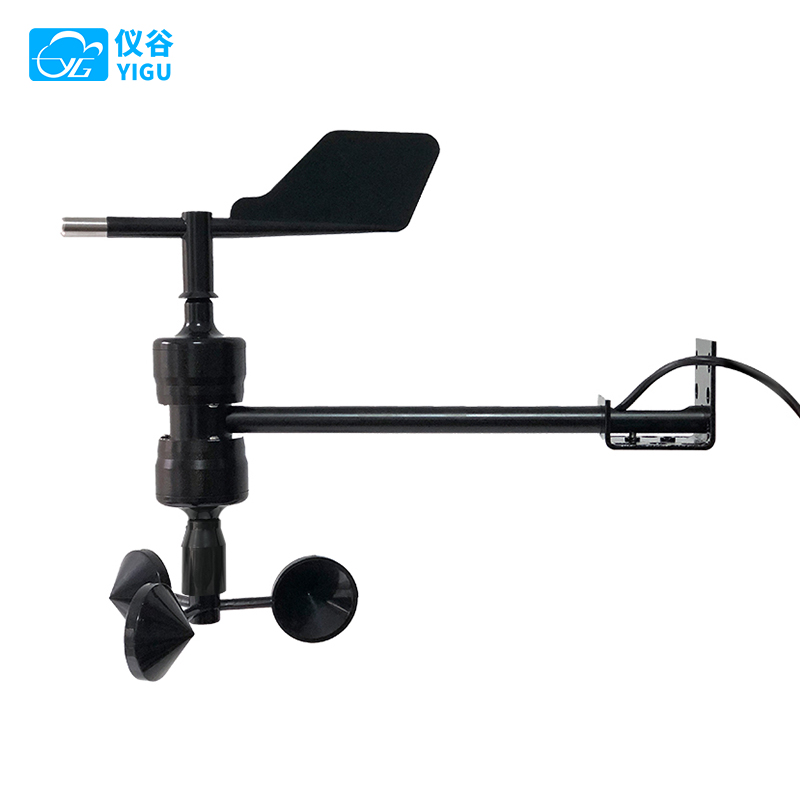

YGC-FSFX-T Integrated Wind Speed and Direction Sensor
【Output Signal】RS485/232, 4–20mA
【Power】DC 5 V, DC 9–30 V
【Protection Level】IP64
【Applications】 meteorology, marine, environmental monitoring, airports, ports, labs, agriculture, industry, and transportation.

WhatsApp: +86 15271247832
Description

Product Introduction


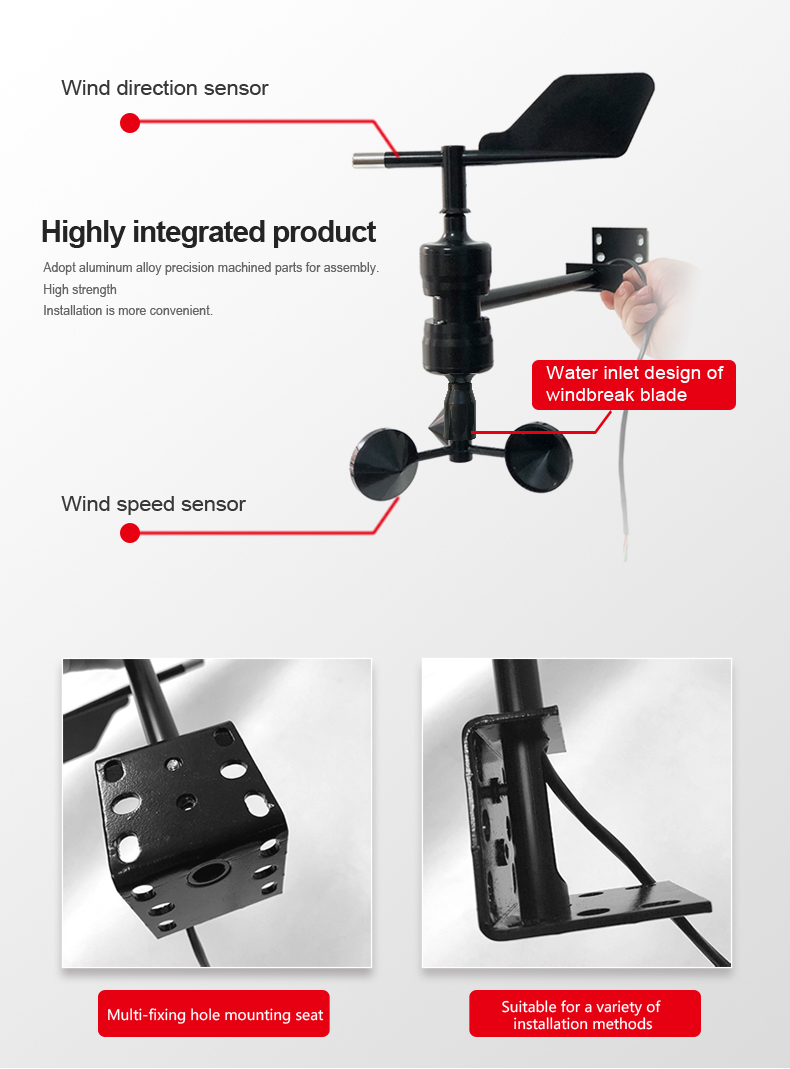

The YGC-FSFX-T Integrated Wind Speed and Direction Sensor is a highly integrated product combining wind speed and direction sensors. It is assembled using precision-machined aluminum alloy components, offering high strength and easier installation.



The wind speed component adopts the traditional three-cup structure, with wind cups made of imported ABS material for high strength and excellent starting performance. Its precision signal processing unit provides various signal outputs based on user requirements, featuring a wide measurement range, good linearity, easy observation, and reliable stability.



The wind direction component is a professional meteorological instrument designed to measure horizontal wind direction. It uses a precision angular sensor and a low-inertia wind vane for responsive wind direction measurement. When the wind direction changes, the vane’s rotating shaft drives the sensor's magnet, and the angular sensor detects the change in magnetic polarity, generating a corresponding electrical signal output. It offers good linearity, high accuracy, no blind spots, easy observation, and stable, reliable performance.



This product is widely applicable in fields such as meteorology, marine environments, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation.



Product Model Selection and Technical Specifications

Measurement Range Wind Speed □ 0–45 m/s (current or voltage output);
□ 0–70 m/s (pulse, RS485, RS232 output);
□ Others
Wind Direction 0-359°
Accuracy Wind Speed Wind Speed: ±(0.3+0.03V) m/s
(V represents the real-time wind speed value)
Wind Direction ±3°
Resolution Wind Speed 0.1m/s
Wind Direction 1°
Output Signal Wind Speed Pulse □ Pulse: high 5V, low 0 V level signal;
(Default NPNR   □PNP)
Current □ 4~20mA   □ 0~20mA
Voltage □ 0~2.5V   □ 0~5V   □ 1~5V
Serial Port □ RS485(□ Default Modbus  □ASCII)
□ RS232(□ Default Modbus  □ASCII)
□ Others
Power Supply □ DC 5V     □ DC 9–30V     □ Others
Cable Length □ Standard: 2.5 meters    □ Others
Starting Wind Speed ≤0.5m/s
Maximum Power Consumption 0.9W
Load Capacity DC12V Power Supply: Current Output Impedance ≤350Ω
DC24V Power Supply: Current Output Impedance ≤900Ω
Voltage Output Impedance ≥1KΩ
Operating Environment Temperature: -35°C to 60°C;
Humidity: ≤100% RH (non-condensing)
Protection Level IP64
Product Net Weight 520g
Packaging Weight 1120 g (including packaging and sensor cables)
Cable Specifications Rated Voltage: 300V, 80°C
💡Note: □ indicates an optional item.



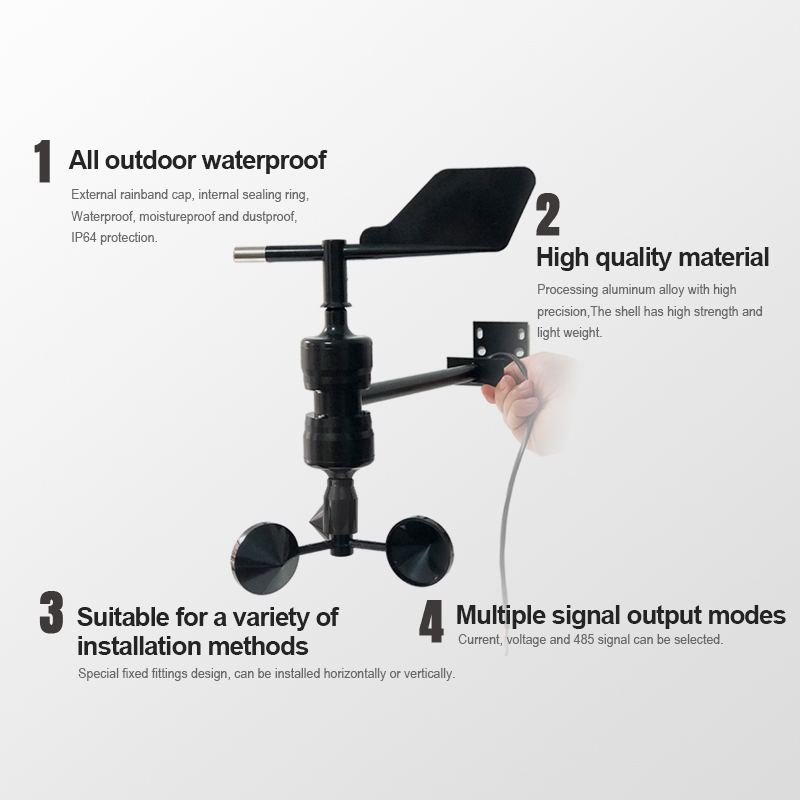

Product features





Product Details


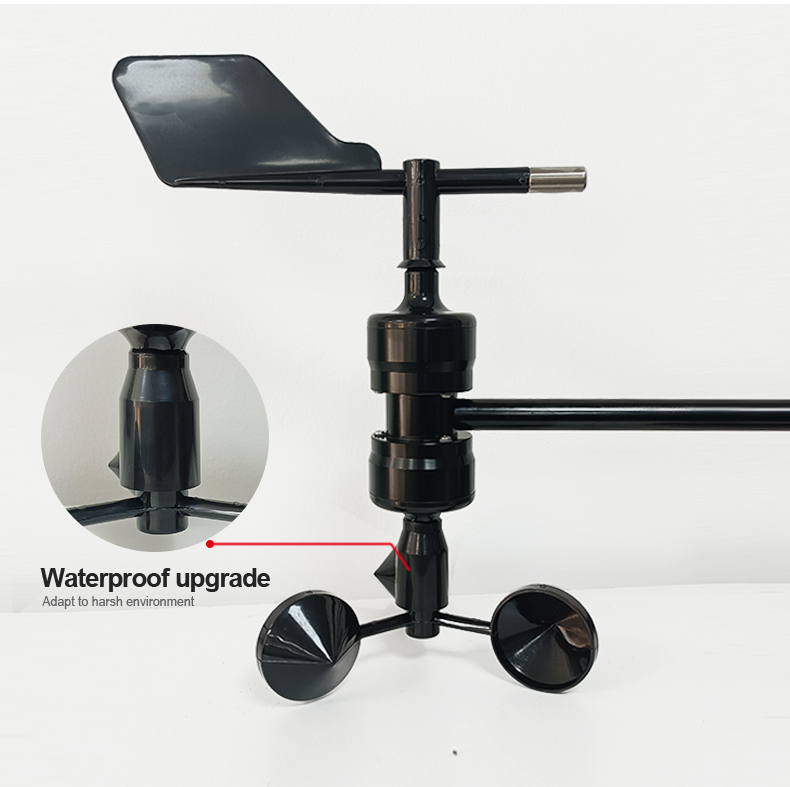

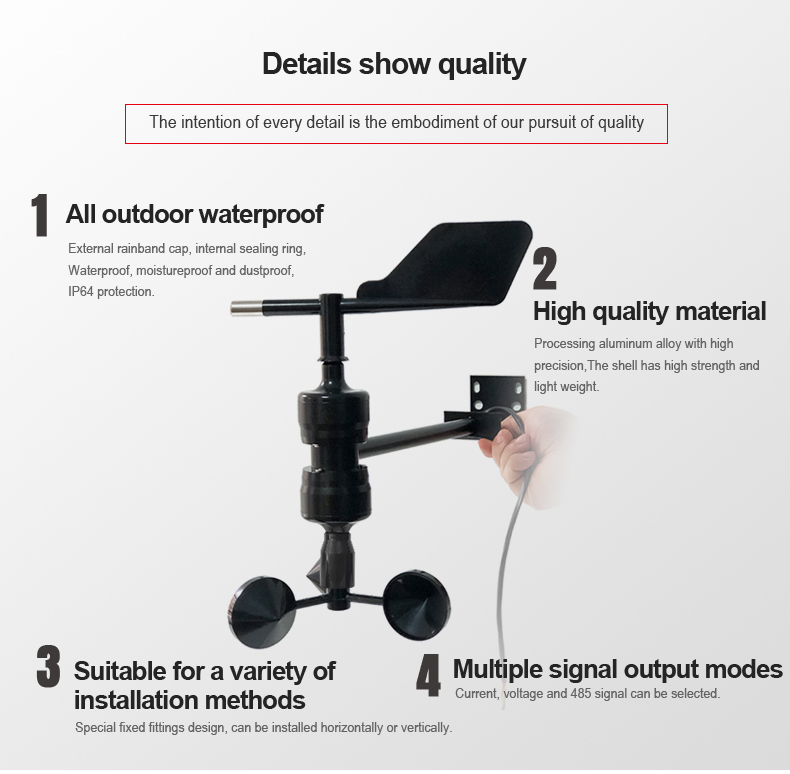

一体式风速风向传感器-T型_04.jpg 一体式风速风向传感器-T型_05.jpg

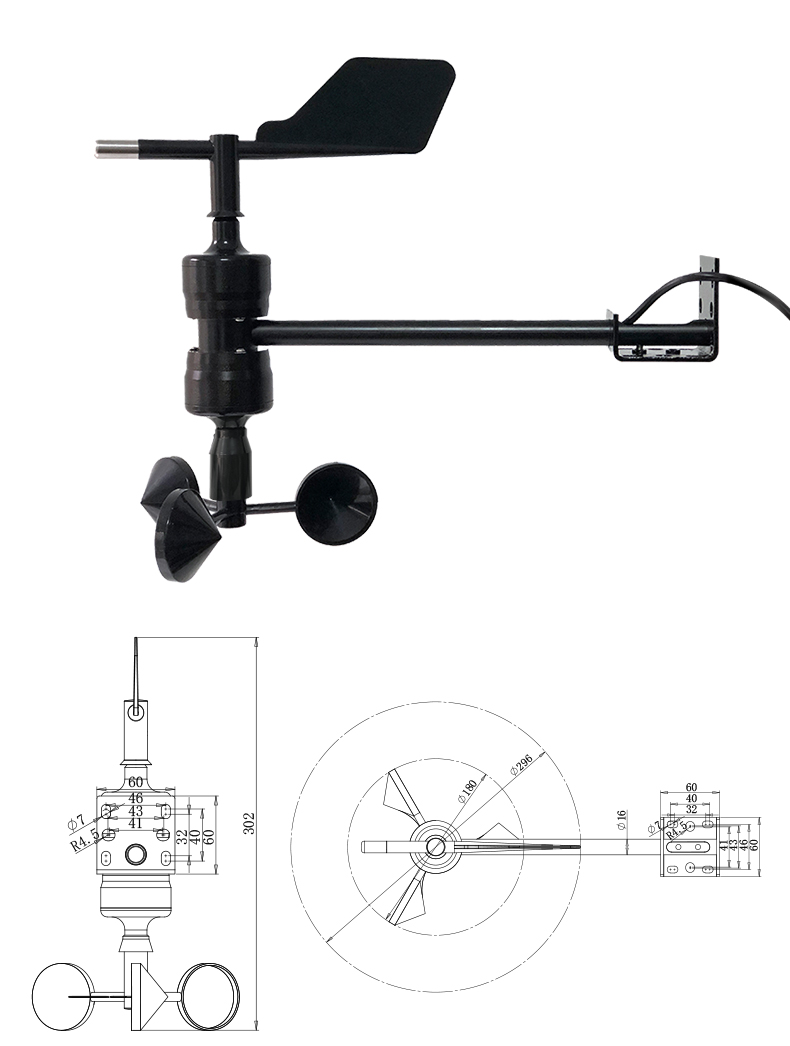

Product Dimensions


Unit: mm

YGC-FSFX-T Integrated Wind Speed and Direction Sensor-Structural Dimensions.jpg

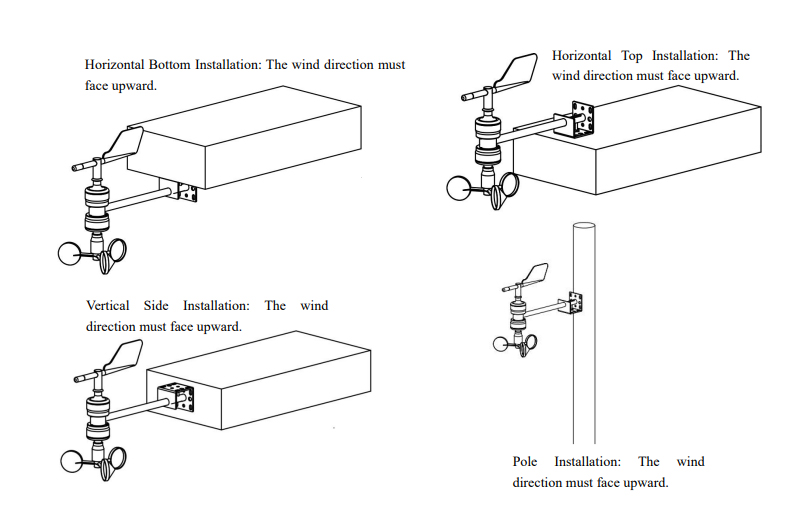

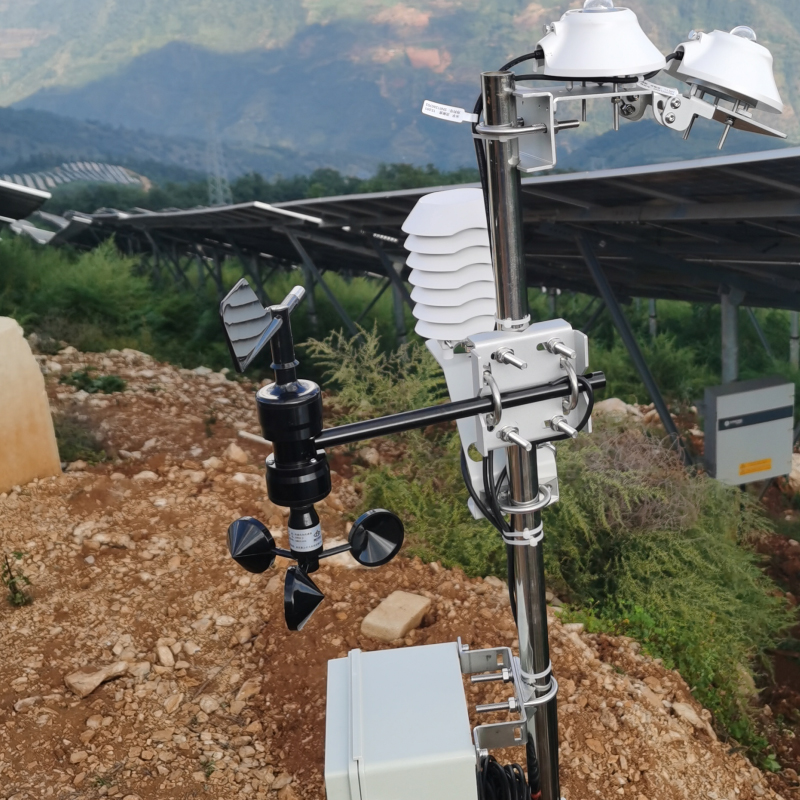

Four Installation Methods Illustrated


YGC-FSFX-T Integrated Wind Speed and Direction Sensor-Installation Methods.jpg



Explanation of Sensor Communication Protocol


  • If you are using a single sensor connected directly to a computer to read data, it is recommended to use the company's proprietary protocol, which displays data intuitively in ASCII format (hexadecimal format is used for sending, non-hexadecimal for receiving).

  • If you are interconnecting multiple sensors with a PLC, SCADA system, or programmable data logger, it is recommended to use the standard Modbus-RTU protocol, which uses hexadecimal format for both sending and receiving.

  • If there are no special requirements, the default parameters for the sensor are: device address = 1, baud rate = 9600, protocol = Modbus-RTU.



Model Selection Table


Model Power Supply Output Description
YGC-FSFX-T     Integrated Wind Speed and Direction Sensor
  5V   5V Power Supply
  KV   9-30V Power Supply
    V 0-5V
    V1 1-5V
    V2 0-2.5V
    A1 4-20mA
    A2 0-20mA
    W1 RS232(Default Modbus Protocol, ASCII Optional)
    W2 RS485(Default Modbus Protocol, ASCII Optional)
    M

Wind Speed Pulse(Default NPNR Output, PNP Optional)

💡Example: YGC-FSFX-T-5V-W2, an integrated wind speed and direction sensor with 5V power supply and RS485 signal output.



Appendix


Appendix 1: 16-Point Wind Direction Chart  16方位风向图



Appendix 2: Wind Force (Wind Speed) Scale

Grade Name Characteristics of Ground Objects Wind Speed (m/s)
0 Calm Smoke rises vertically, stationary. 0–0.2
1 Light Air Smoke shows wind direction, leaves slightly move. 0.3–1.5
2 Light Breeze Wind felt on the face, leaves move slightly. 1.6–3.3
3 Gentle Breeze Leaves and small twigs constantly move, flags extend, tall grass sways. 3.4–5.4
4 Moderate Breeze Lifts dust and paper, tree branches sway, tall grass moves in waves. 5.5–7.9
5 Fresh Breeze Small trees with leaves sway, inland waters have small waves, tall grass shows clear waves. 8.0–10.7
6 Strong Breeze Large tree branches move, wires whistle, difficult to use an umbrella, tall grass occasionally bends to the ground. 10.8–13.8
7 High Wind Whole trees sway, large branches bend, difficult to walk against the wind. 13.9–17.l
8 Gale Small branches break, resistance to walking against the wind becomes very strong. 17.2–20.7
9 Strong Gale Straw houses damaged, roof tiles lifted, large branches break. 20.8–24.4
10 Storm Trees may be uprooted, general buildings damaged. 24.5–28.4
11 Violent Storm Large trees uprooted, general buildings severely damage. 28.5–32.6
12 Hurricane Rare on land, extremely destructive. >32.6
