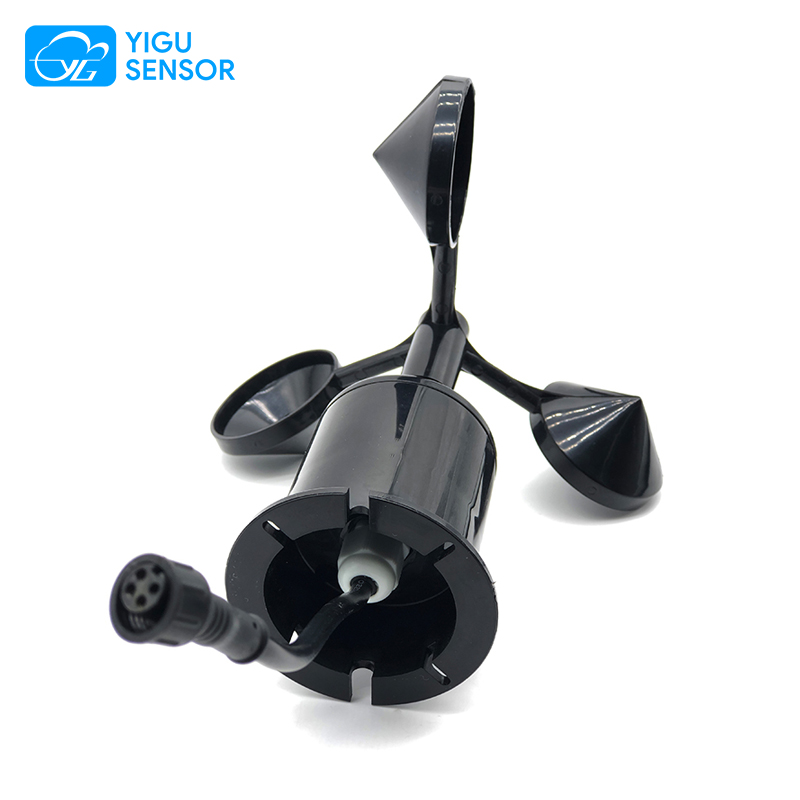

YGC-FS1 Wind Speed Sensor 02-YIGU Sensor.jpg

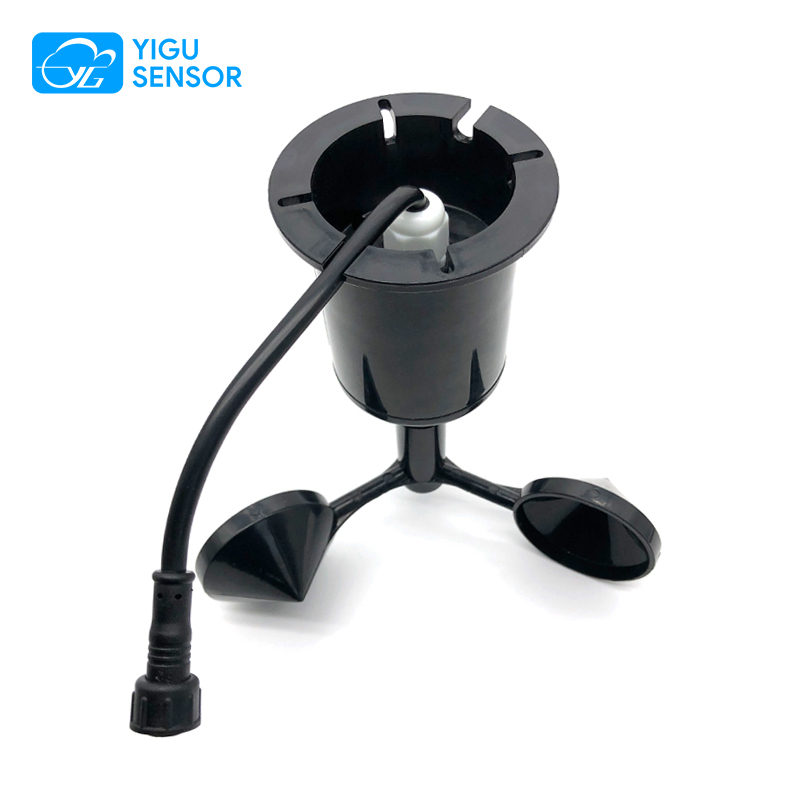

YGC-FS1 Wind Speed Sensor 03-YIGU Sensor.jpg

YGC-FS1 Wind Speed Sensor

Product: Wind Speed Sensor
Material: ABS
Protection: IP64
Output: RS485, 4–20mA etc.

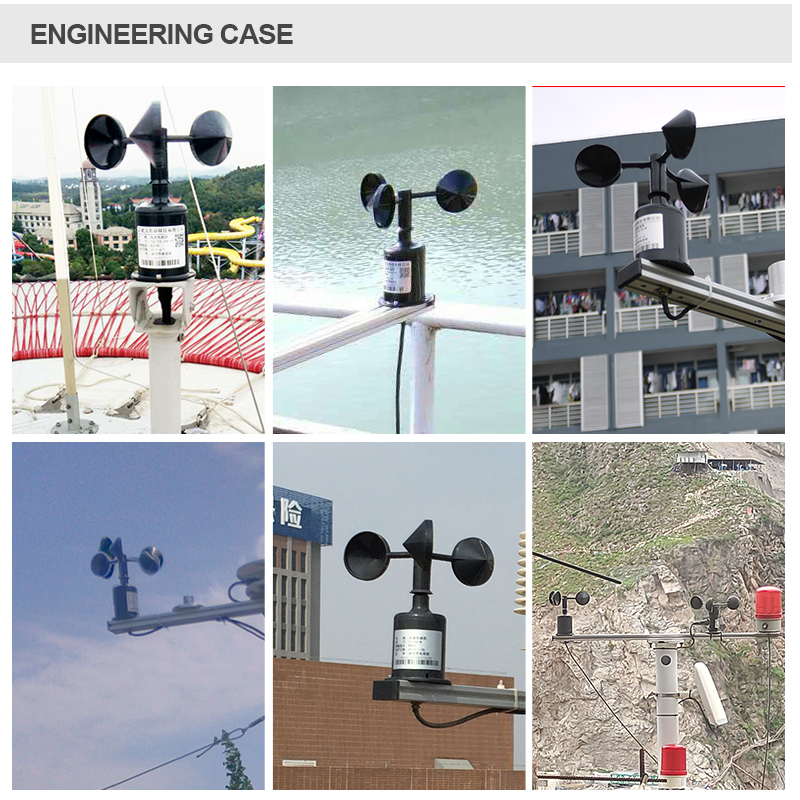

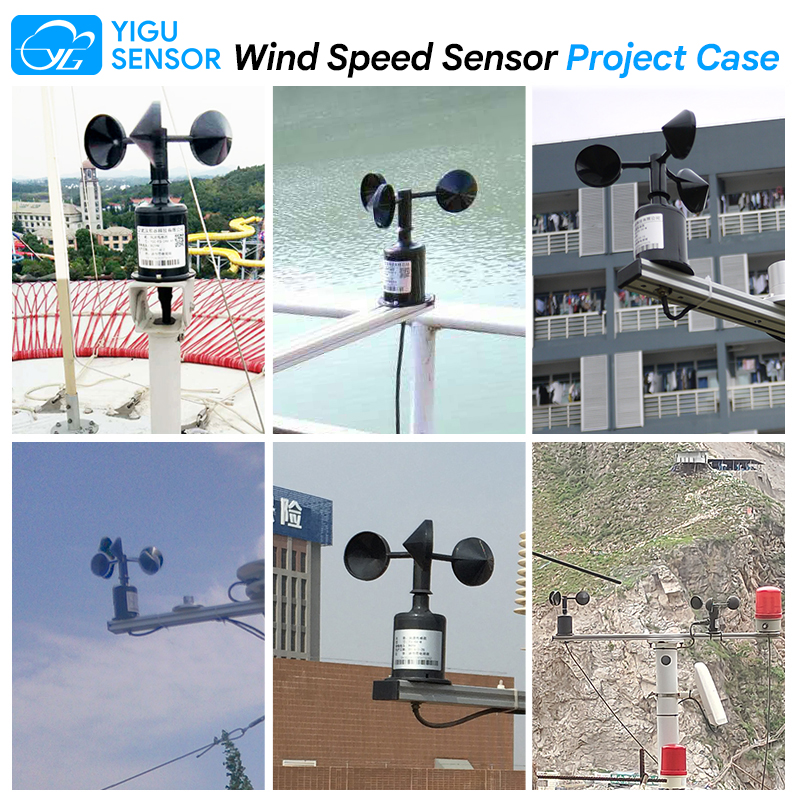

Applications: Advertising barriers, meteorology, marine, environment, airports, ports, laboratories, industrial & agricultural, and transportation.

WhatsApp: +86 15271247832

Inquire Now

Description

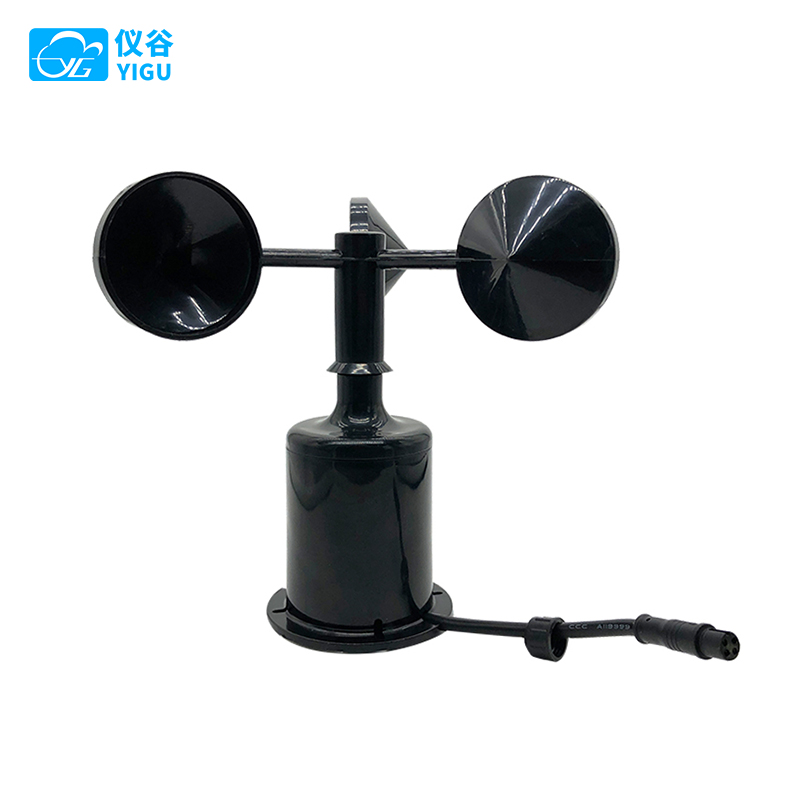

YGC-FS1 Wind Speed Sensor

—— Three-Cup Anemometer for 0–70 m/s

▶ Product Introduction

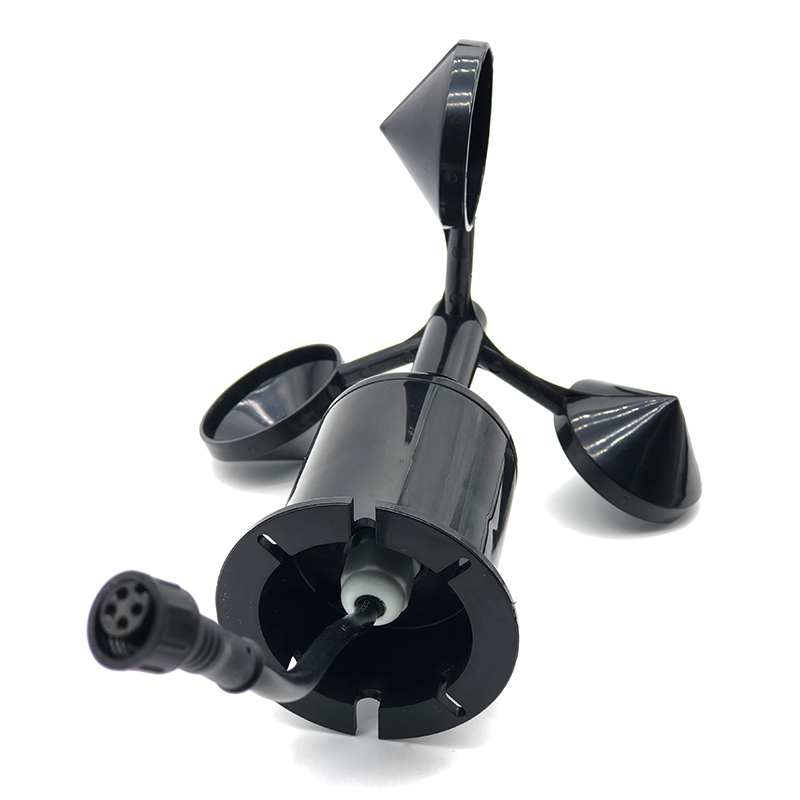

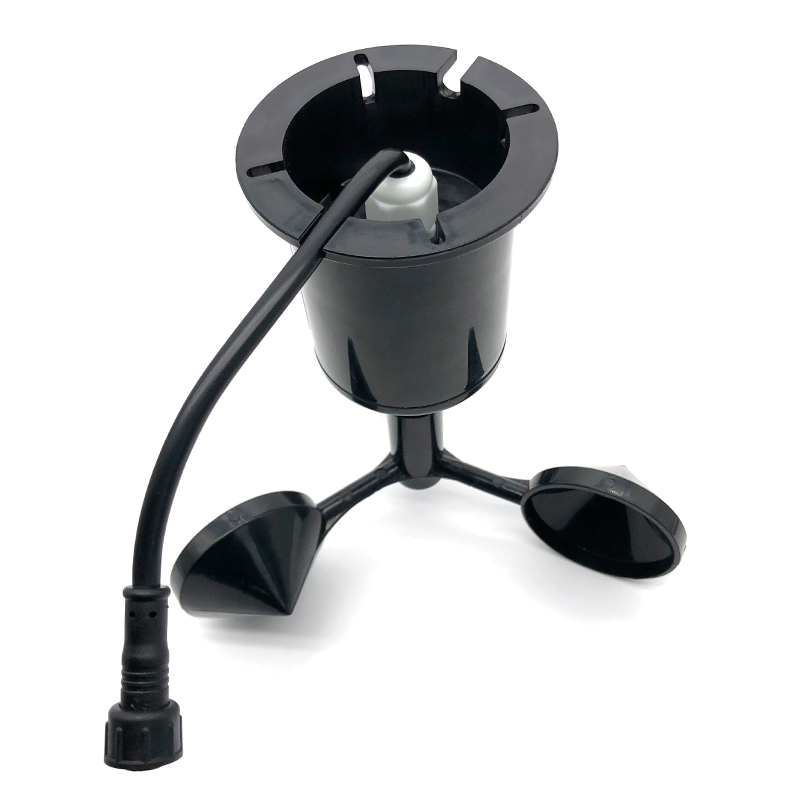

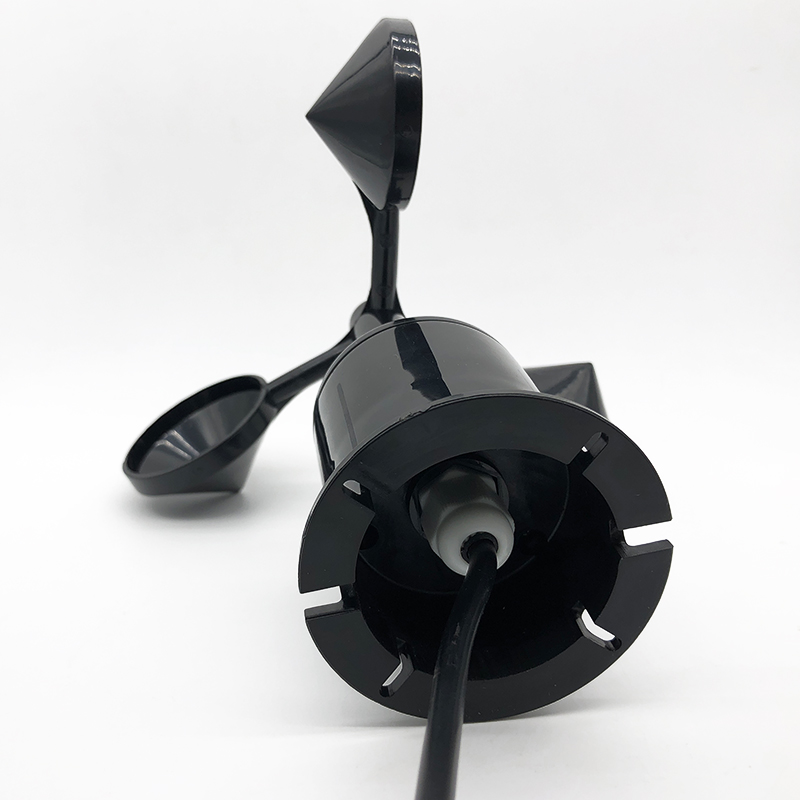

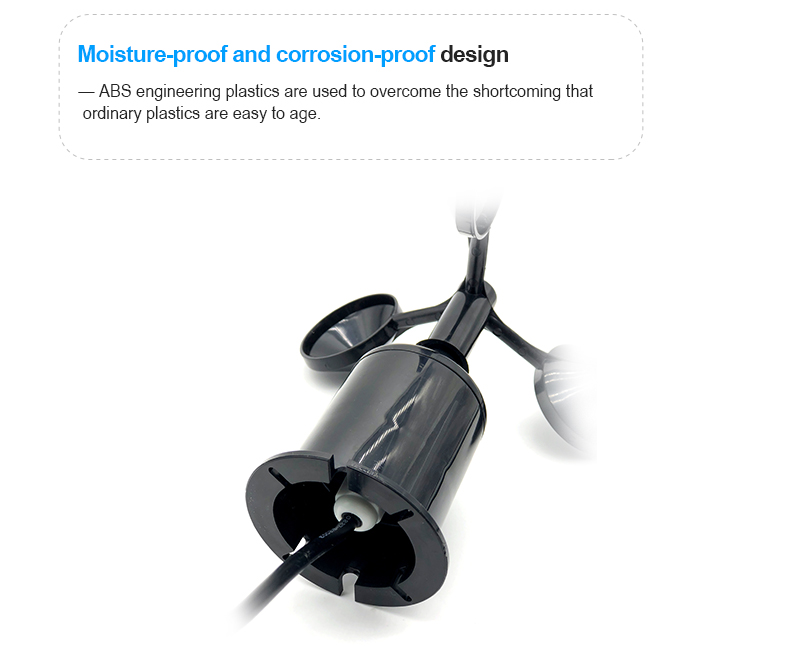

The YGC-FS1 wind speed sensor adopts a traditional three-cup wind speed sensor structure. The wind cups are made of ABS material, ensuring high strength and low starting wind speed. The built-in signal processing unit inside the cup body can output corresponding wind speed signals based on user requirements. It supports RS485 / RS232 signals, pulse, or voltage/current signals and can be widely used in fields such as advertising barriers, meteorology, marine, environment, airports, ports, laboratories, industrial and agricultural applications, and transportation.

▶ Product Selection and Technical Parameters

Measurement Range		□ 0～45m/s (Current, Voltage Output)
		□ 0～70m/s (Pulse, 485, 232 Output)
		□ Others
Power Supply		□ DC 5V
		□ DC 9-30V
		□ Others
Output Signal	Pulse	High 5V, Low 0V level signal（□Default NPNR □PNP）
	Current	□ 4～20mA □ 0～20mA
	Voltage	□ 0～2.5V □ 0～5V □ 1～5V
	Serial Port	□ RS485（□Default Modbus □ASCII）
	Serial Port	□ RS232（□Default Modbus □ASCII）
	Others	Please describe.

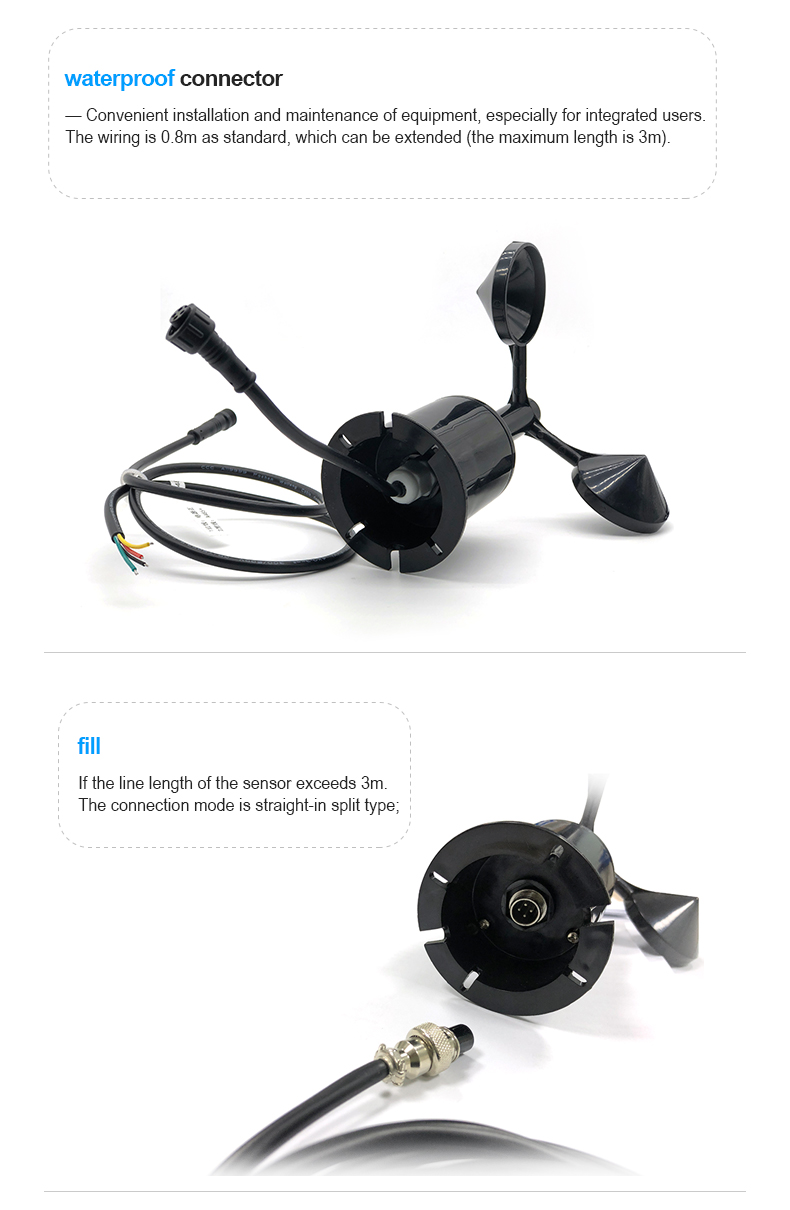

Cable Length		□ Standard: 0.8 meters
Cable Length		□ Others: Please describe.
💡Note: □ indicates an optional item.

【Accuracy】: ±(0.5+0.02V)m/s (V represents the real-time wind speed value)
【Resolution】: 0.1m/s
【Starting Wind Speed】: ≤0.8m/s
【Maximum Power Consumption】: 0.48W
【Load Capacity】:

DC12V power supply, current output impedance ≤350Ω
DC24V power supply, current output impedance ≤900Ω
Voltage output impedance ≥1KΩ

【Operating Environment】: Temperature: -35℃ to 60℃
【Humidity】: ≤100% RH, non-condensing
【Protection Level】: IP64
【Net Weight】: 125g
【Package Weight】: 510g (including packaging and sensor cable)
【Cable Grade】: Rated Voltage: 300V, 80℃

▶ Product Advantages

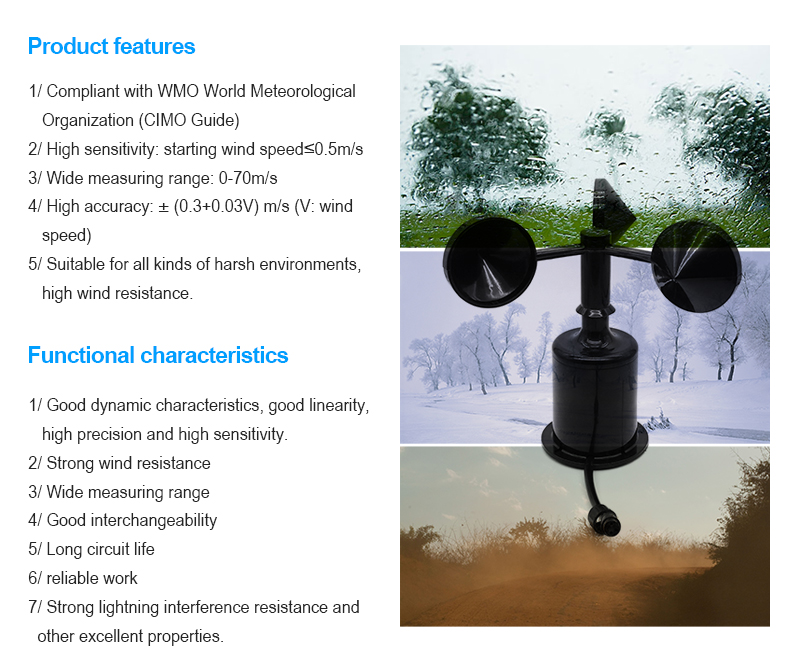

This sensor is fully compliant with the WMO CIMO Guide, ensuring reliable and standardized wind measurement.
It offers a wide measuring range of 0–70 m/s and high sensitivity with a starting wind speed of ≤ 0.5 m/s, making it capable of capturing both gentle breezes and extreme wind events. The high accuracy of ±(0.3 + 0.03V) m/s (where V is the wind speed) guarantees precise data acquisition.
Designed for harsh environments, the sensor features strong wind resistance and excellent resistance to lightning interference. Its good dynamic characteristics and linearity ensure stable performance, while the long circuit life and reliable operation minimize maintenance needs. Additionally, its good interchangeability makes replacement and system integration quick and easy.
