Product Introduction

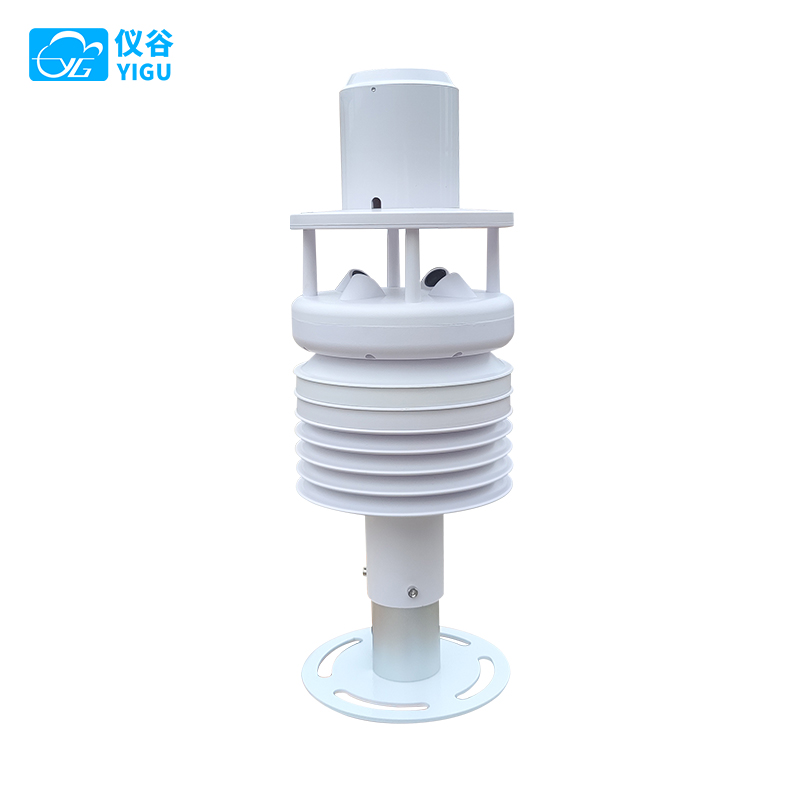

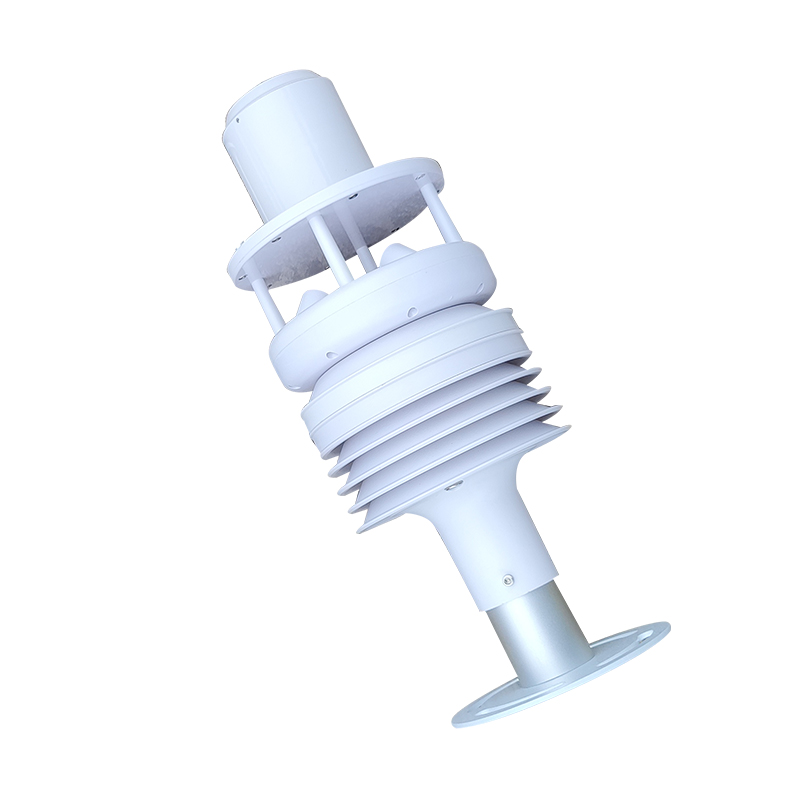

YGC-CSYT-M Ultrasonic Multi in One Environmental Monitoring Instrument is a maintenance free ultrasonic environmental monitoring sensor. Compared with traditional mechanical anemometers, it has no inertia effect of rotating parts and can quickly and accurately measure more than 10 environmental meteorological elements; Optional high-efficiency heating device ensures reliable operation in extremely cold environments.
Application Area ：Suitable for monitoring wind speed and other environmental factors in fields such as agriculture, meteorology, forestry, electricity, environmental protection, ports, railways, highways, etc.
Certification
Features
- Utilizes the time-difference measurement principle for strong resistance to environmental interference.
- Adopts an efficient filtering algorithm with special compensation technology for rain and fog conditions.
- Equipped with a more expensive and accurate 200kHz ultrasonic probe to ensure more precise and stable wind speed and direction measurements.

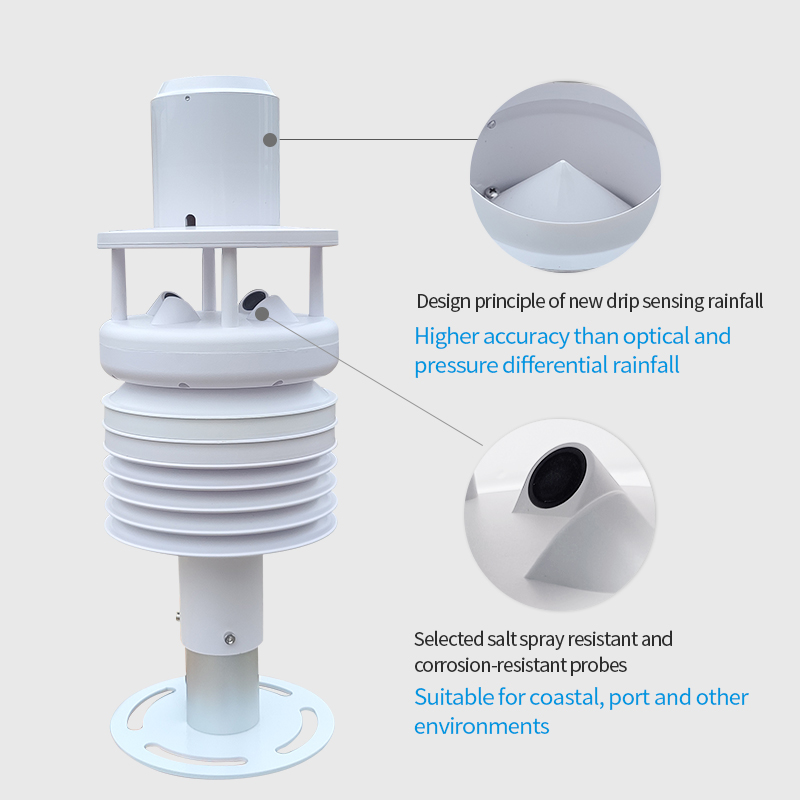

- Features a salt spray corrosion-resistant probe with a fully sealed structure, tested under national salt spray standards, making it suitable for coastal, port, and similar environments.
- Offers optional output modes such as RS232, RS485, 4-20mA, 0-5V, or 4G wireless signals.
- Modular design with high integration, allowing flexible selection of environmental monitoring elements, with the capability to integrate more than 10 elements.
- Broad environmental adaptability, with rigorous testing for high/low temperatures, water resistance, salt spray, and sand/dust resistance during product development.
- Designed for low power consumption.
- Optional features include heating, GPS/Beidou positioning, and electronic compass.
Main Technical Parameters
|
Electrical Parameters |
|

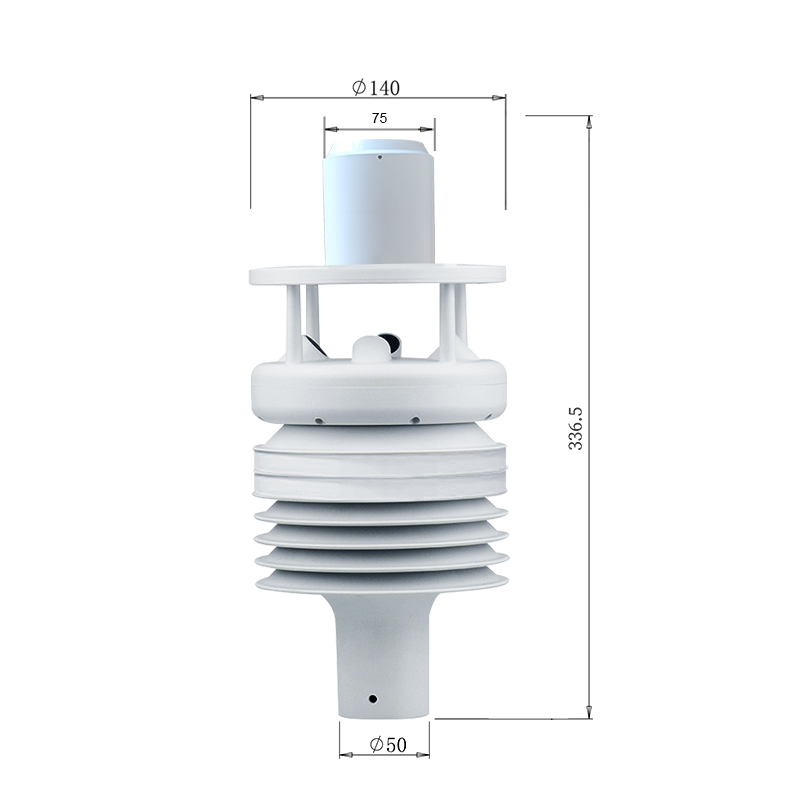

Mechanical Structure Parameters |
|
|
Operating Voltage |
DC 9V-30V or 5V |
Material |
ABS engineering plastic |
|
Power Consumption |
0.4W (10.5W with heating) |
Environmental Humidity |
0~100%RH |
|
Signal Output |
4~20mA/ 0-5V |
Environmental Temperature |
-40℃~+60℃ |
|
|
RS485/4G wireless signal |
Protection Level |
IP65 |
|
|
|
Cable Connection |
Aviation plug, 3-meter sensor cable |
|
|
|
Color |
Off-white |
|
|
|
Reference Weight |
~0.5KG (2 parameters); 1KG (5 or multi-parameters) |
Sensor Specifications
|
Environmental Factor (Optional) |
Range
|
Accuracy |
Resolution |
Power Consumption |
|
Wind Speed |
0-70m/s |
Start speed≤0.8m/s， ±(0.5+0.02rdg)m/s； |
0.01m/s |
0.1W |
|
Wind Direction |
0～360 |
±3° |
1° |
|
|
Atmospheric Temperature |
-40～80℃ |
±0.3℃ |
0.1℃ |
1mW |
|
Atmospheric Humidity |
0～100%RH |
±5%RH |
0.1%RH |
|
|
Atmospheric Pressure |
300～1100hPa |
±1 hPa（25℃） |
0.1 hPa |
0.1mW |
|

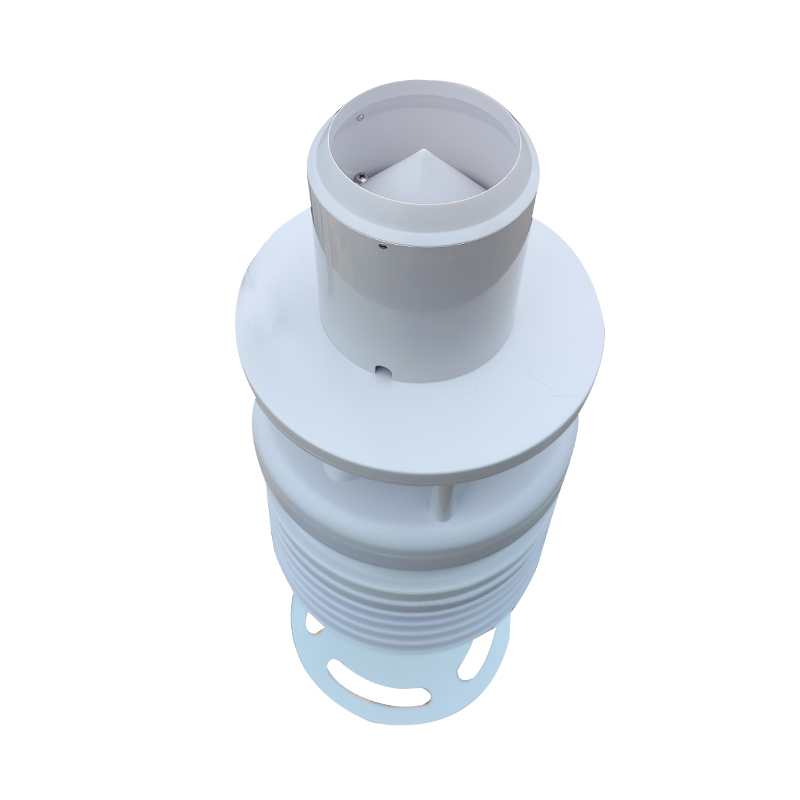

Rain Intensity |
Measurement Range：0～4mm/min |
±10% (static test, rain intensity at 2mm/min) with daily rainfall accumulation |
0.03mm/min |
240mW |
|
Illuminance |
0～200000Lux (outdoor) |
±4% |
1 Lux |
0.1mW |
|
Solar Radiation |
0～1500 W/m2 |
±3% |
1W/m2 |
400mW |
|
CO2 |
0～5000ppm |
±(50ppm+5%rdg) |
1ppm |
100mW |
|
Noise |
30～130dB(A) |
±3dB(A) |
0.1 dB(A) |
|
|
PM2.5/10 |
0～500μg/m3 |
≤100ug/m3：±10ug/m3； ＞100ug/m3：±10% of the reading (calibrated with TSI 8530 under conditions of 25 ± 2°C and 50 ± 10% RH). |
1μg/m3 |
0.5W |
|
PM100 |
0～20000ug/m3 |
±30ug/m3±20% |
1μg/m3 |
0.5W |
|
Four Gases（ CO、NO2、SO2、O3） |
CO（0～1000ppm） NO2（0～20ppm） SO2（0～20ppm） O3（0～10ppm） |
≤±3% of the reading（25℃） |
CO（0.1ppm） NO2（0.01ppm） SO2（0.01ppm） O3（0.01ppm） |
0.2W |
|
Electronic Compass |
0～360 |
±5° |
1° |
100mW |
|
GPS |
Longitude （-180～180°） Latitude（-90～90°） Altitude（-500～9000m） |
≤10m ≤10m ≤3m |
0.1 seconds 0.1 seconds 1 meter |
|
|
Soil Moisture |
0～60%（volumetric） |
±3%（0～35%） ±5%（35～60%） |
0.1% |
170mW |
|
Soil Temperature |
-40～80℃ |
±0.5℃ |
0.1℃ |
|
|
Soil Conductivity |
0～20000us/cm |
±5% |
1us/cm |
|
|
Soil Salinity |
0～10000mg/L |
±5% |
1mg/L |
|
|
Total Power Consumption = Sensor Power Consumption (Optional) + Mainboard Base Power Consumption |
Mainboard Base Power Consumption |
300mW |
||
