Product Introduction

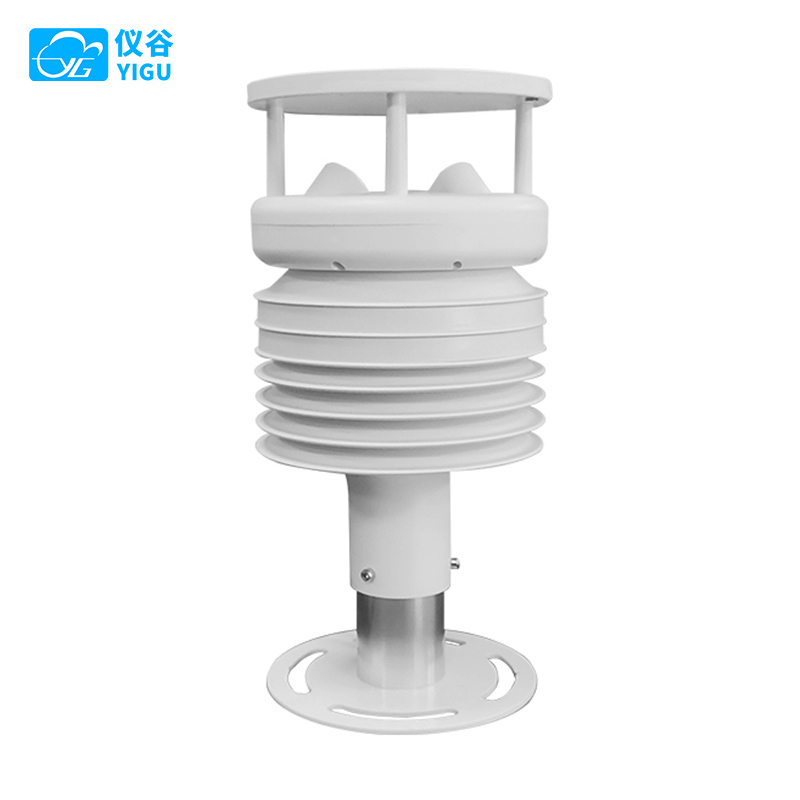

YGC-CSYT-5 Ultrasonic Meteorological Five Element Environmental Monitoring Instrument is a maintenance free ultrasonic environmental monitoring sensor. Compared with traditional mechanical anemometers, it has no inertia effect of rotating parts and can quickly and accurately measure the five meteorological elements; Optional high-efficiency heating device ensures reliable operation in extremely cold environments.

application area ：Suitable for monitoring wind speed, wind direction, temperature, humidity, and pressure factors in agriculture, meteorology, forestry, electricity, environmental protection, ports, railways, highways, and other fields.

Qualification Certificate

Function Characteristics

▶  Adopting the principle of time difference measurement, it has strong resistance to environmental interference.

▶  Adopting efficient filtering algorithms and special compensation techniques for rainy and foggy weather.

▶  Choose a more expensive and precise 200Khz ultrasonic probe to ensure more accurate and stable measurement of wind speed and direction values.

▶  Using salt spray corrosion resistant probes and fully sealed structures, after undergoing national standard salt spray tests, the results are good and suitable for coastal, port and other environments.

▶  RS232/RS485/4-20mA/0-5V， Output methods such as 4G wireless signals are optional.

▶  Modular design, high degree of integration, and the ability to select environmental monitoring elements as needed, with a maximum integration of more than 10 elements.

▶  Wide environmental adaptability, product development has undergone strict environmental tests such as high and low temperature, waterproof, salt spray, sand and dust resistance.

▶  Low power design.

▶  Optional heating function, GPS/Beidou positioning, electronic compass and other functions.

Main Technical Parameters

Sensor Specifications

Mounting Dimensions

Unit of measurement: millimeters (mm)

Kind Reminder:

The north-pointing arrow indicates magnetic north, which does not exactly align with true geographic north. When calibrating the sensor, the deviation (error) based on your location must be taken into account.

The deviation depends on the geographical location and may exceed 15° in some areas (e.g., northeastern regions). In eastern China, this deviation is negligible (<3°). For more detailed information, refer to online resources.

Ultrasonic wind sensors are precision instruments. Handle with care and avoid dropping or impacting the device.

※ Ultrasonic wind sensor, a precision instrument, should be handled with care and not bumped.

Precautions

▶ Please check if the packaging is intact and verify if the product model matches the selected one;

▶ Do not connect live wires. Only after the wiring is checked and confirmed to be correct, can the power be turned on;

▶ Sensors are precision components. Users are advised not to disassemble them by themselves, use sharp objects or corrosive liquids to contact the sensor surface, in order to avoid damaging the product;

▶ The installation environment ensures that the sensors are not interfered with by other running devices that may not fully comply with common standards, such as radio/radar transmission devices, ship engines, engines, etc;

▶ Do not install it on the same plane as any radar scanning device, and maintain a distance of at least 2 meters;

▶ Avoid the fluff flow generated by surrounding buildings such as trees, power poles, high-rise buildings, etc., which can affect the accuracy of the product;

▶ Please keep the calibration certificate and certificate of conformity, and return them together with the product during maintenance.
