YGC-BYX-M Louvered Multi-Function Environmental Sensor with Optional Temperature/Humidity/Illuminance Sensing
YGC-BYX-M louvered multi-function environmental sensor measures CO2, PM2.5/PM10/PM100 (TSP), illuminance, noise, temperature, humidity, air pressure, wind speed/direction & compass. RS485 Modbus, up to 4 analog outputs.
WhatsApp: +86 15271247832
Description
Product Introduction
The YGC-BYX-M Louvered Multi-Function Sensor is an integrated sensor designed to measure multiple environmental parameters, including CO2, PM2.5, PM10, PM100 (TSP), illuminance, noise, temperature, humidity, air pressure, wind speed, wind direction, and compass heading.

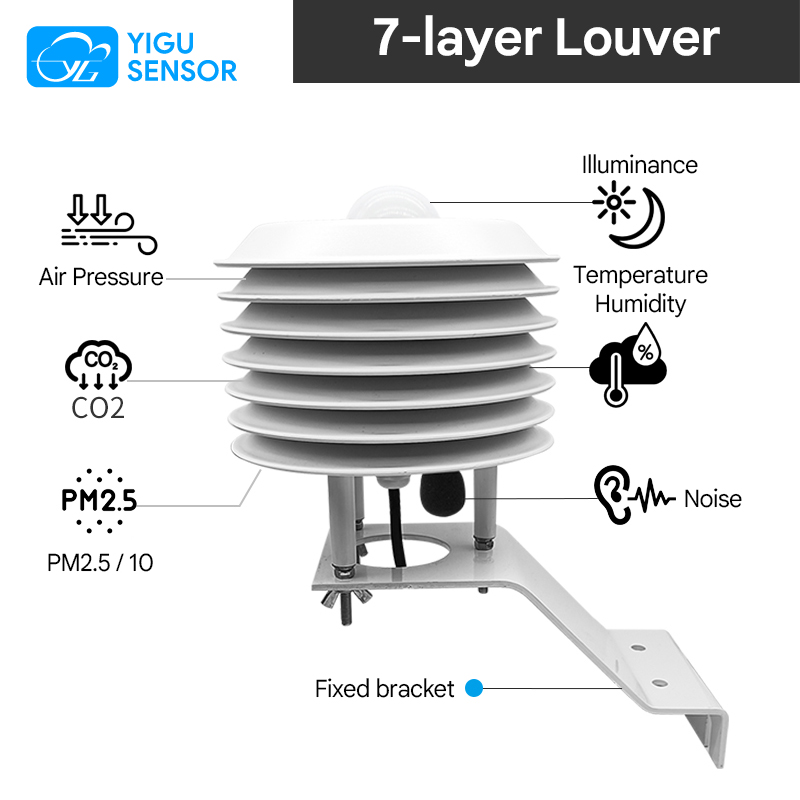

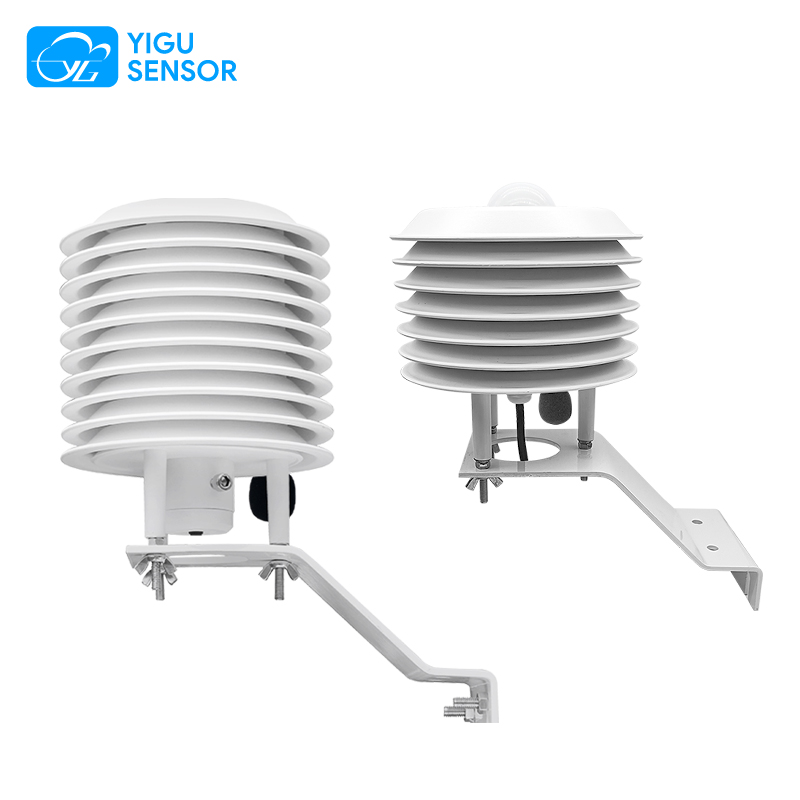

Its louvered structure prevents direct solar radiation and ground-reflected radiation from affecting the device, protects it from strong wind, rain, and snow, and ensures adequate ventilation for the sensor. This enables accurate measurement of external environmental parameters such as air temperature, humidity, PM2.5, and noise.

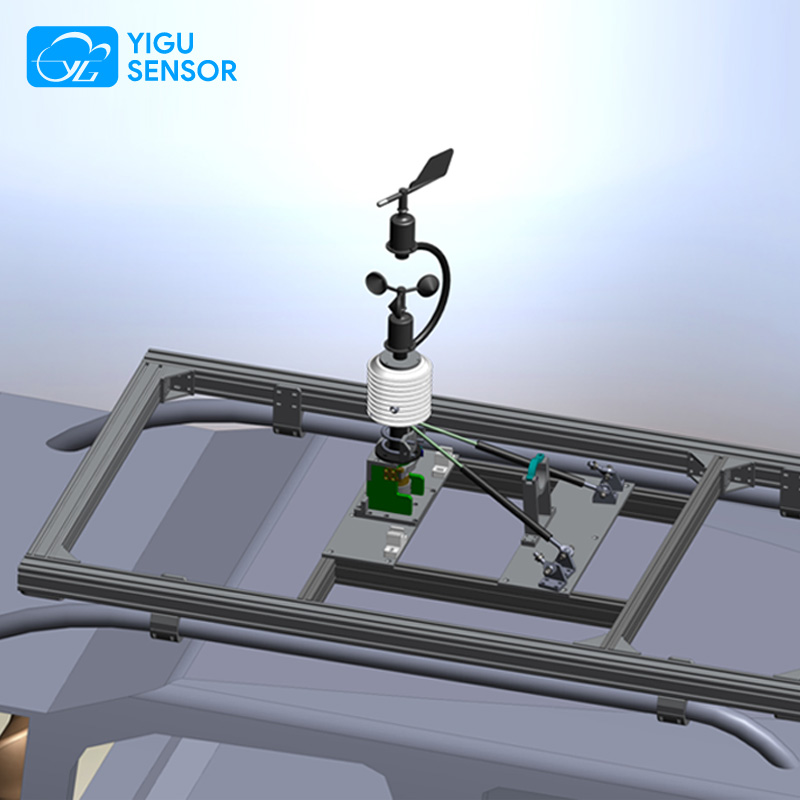

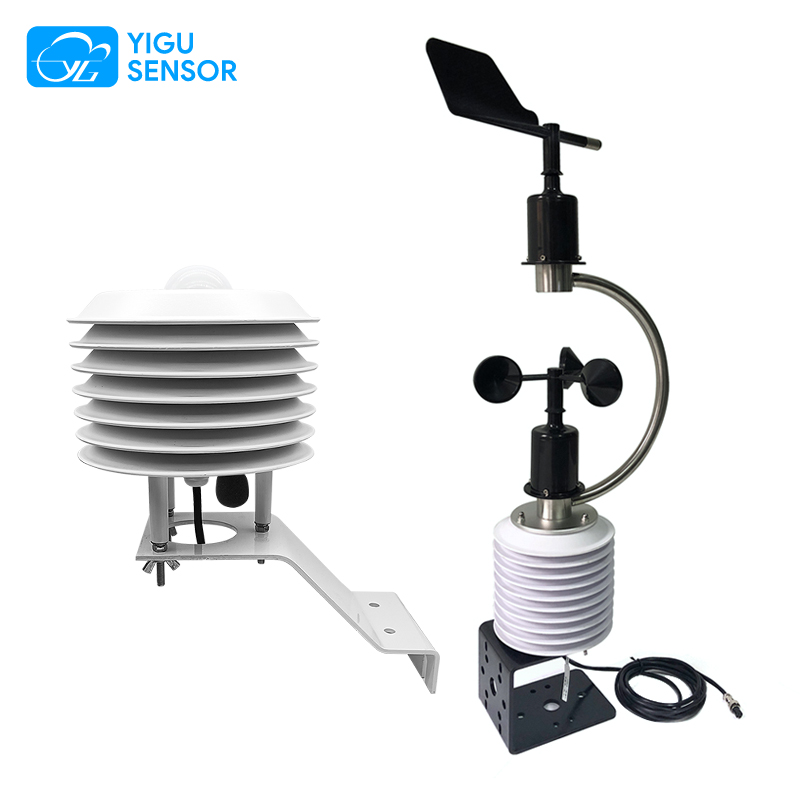

The louvered shield features a 140 mm V-shaped ring structure, ensuring free airflow from any angle. The optional semi-arc-shaped integrated wind speed and direction sensor can be seamlessly integrated with the louvered shield, enabling accurate measurement of wind speed and direction while maintaining an aesthetically pleasing and durable design.
The louvered multi-function sensor uses an RS485 interface, allowing easy connection to other data acquisition devices. These devices can read sensor values using the standard Modbus protocol. In addition, the device can output up to four analog signals (current and voltage outputs).

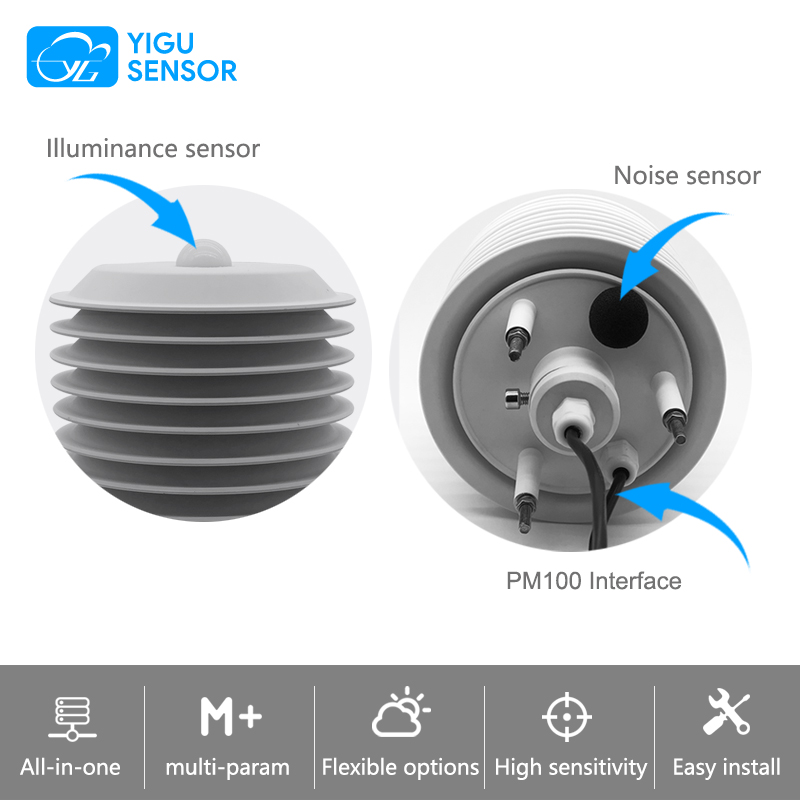

Product Features
- Highly integrated design: All sensors are integrated into a single unit and fixed with only a few screws, making installation extremely convenient.
- Compact and aesthetically pleasing design: The sensor is designed as an integrated unit with a single signal cable, making wiring simple and convenient. The overall device has a clean and attractive appearance.
- Freely configurable sensors: Customers can select different sensors according to their actual needs, allowing two-parameter, three-parameter, or multi-parameter configurations, such as combined temperature and humidity sensors, combined temperature, humidity, and illuminance sensors, and combined temperature, humidity, wind speed, and wind direction sensors.
- Durable materials: The plastic louver discs incorporate UV-resistant and anti-aging materials. The unique structural design provides high reflectivity, low thermal conductivity, and UV resistance, enabling reliable operation in extreme weather conditions.
Technical Parameter
|
Measurement Parameters |
Range |
Accuracy |
Resolution |
PC |
|||||||||
|
□ Semi-Arc Integrated Wind Speed & Direction
|
Wind Speed |
□ 0~45m/s（analog） □ 0~70m/s（digital） |
Starting speed≤0.8m/s ±(0.5+0.02V)m/s； |
0.1m/s |
0.1W |
||||||||
|
Wind Direction |
0~359° |
±3° |
1° |
|
|||||||||
|
□ Illuminance |
□ 0-200000Lux（Outdoor） □ 0-65535Lux（Indoor） |
±4% |
1 Lux |
0.1mW |
|||||||||
|
□ CO2 |
0-5000ppm |
±(50ppm+5%) |
1ppm |
100mW |
|||||||||
|
□ PM2.5/10 |
0～1000μg/m3 |
≤100ug/m3：±10ug/m3； ＞100 µg/m³：± 10% of the reading (Calibrated with TSI 8530, under environmental conditions of 25 ± 2°C and 50 ± 10% RH) |
1μg/m3 |
0.5W |
|||||||||
|
□ PM100 |
0~20000μg/m3 |
±30μg/m3±20% |
1μg/m3 |
0.4W |
|||||||||
|
□ Air Temperature |
-20~50℃ (analog) |
□ ±0.3℃（Standard） □ ±0.2℃（High precision） |
0.1℃ |
1mW |
|||||||||
|
-40~100℃ (digital） |
|||||||||||||
|
□ Air Humidity |
0~100%RH |
□ ±5%RH（Standard） □ ±3%RH（High precision） |
0.1%RH |
1mW |
|||||||||
|
□ Air Pressure |
300~1100hPa |
±1 hPa（25℃） |
0.1 hPa |
0.1mW |
|||||||||
|
□ Noise |
30~130dB(A) |
±3dB(A) |
0.1 dB(A) |
100mW |
|||||||||
|
□ Electronic Compass |
0~360° |
±4° |
1° |
100mW |
|||||||||
|
□ GPS |
Longitude |
-180～180° |
≤10 meters |
0.1 sec |
- |
||||||||
|
Latitude |
-90～90° |
≤10 meters |
0.1 sec |
|
|||||||||
|
Altitude |
-500～9000m |
≤3 meters |
1 m |
|
|||||||||
|
□ Four Gases
|
CO |
～1000ppm |
≤±3% of reading（25℃） |
1ppm |
＜1W |
||||||||
|
NO2 |
～20ppm |
0.1ppm |
|||||||||||
|
SO2 |
～20ppm |
0.1ppm |
|||||||||||
|
O3 |
0～20ppm |
0.1ppm |
|||||||||||
|
□ Photoelectric Radiation |
0～1500 W/m2 |
±3% |
1W/m2 |
400mW |
|||||||||
|
□ Rainfall Sensor |
0～4.00mm/min |
±10%（indoor static testing, rainfall intensity of 2 mm/min） |
0.03mm/min |
240mW |
|||||||||
|
Sensor Total Power Consumption = Multi-Parameter Power Consumption + Basic Power Consumption of Motherboard |
Basic Power Consumption of Motherboard: 200mW |
||||||||||||
|
Louver Layer Height |
□ 7-layer □ 10-layer |
||||||||||||
|
Fixed Accessories |
□ Bent Fixing Plate (Default) □ U-Shaped Flange □ Others |
||||||||||||
|
Power Supply Options |
□ DC5V □ DC9-30V □ Others |
||||||||||||
|
Output Formats |
□ RS485（Modbus-RTU） □ RS232（Modbus-RTU） |
||||||||||||
|
□ 4-20mA □ 0-20mA □ 0-5V □ 0-2.5V □ 1-5V |
|||||||||||||
|
Note: For voltage/current analog signal outputs, a single louvered sensor can integrate up to 4 analog signals. |
|||||||||||||
|
Cable Length |
□ 2 meters (Default) □ Others |
||||||||||||
|
Load Capacity |
500Ω (12V power supply) |
||||||||||||
|
Protection Level |
IP54 |
||||||||||||
|
Working Environment |
-40℃~+75℃(general) -20℃~+55℃（for PM sensors） |
||||||||||||
| 💡Note: □ indicates an optional item. | |||||||||||||
|
Model Selection |
YGC-BYX-M |
||||||||||||
|
Power |
5V or KV |
||||||||||||
|
Output |
V |
V1 |
V2 |
A1 |
A2 |
W1 |
W2 |
M |
|||||
|
Output Description |
0-5V |
1-5V |
0-2.5V |
4-20mA |
0-20mA |
RS232 |
RS485 |
Pulse (Wind Speed Only) |
|||||
|
Example:YGC-BYX-M-5V-W2，Louvered Multi-Function Sensor, 5V power supply, RS485 output. |
|||||||||||||
Product Features
Product Dimensions

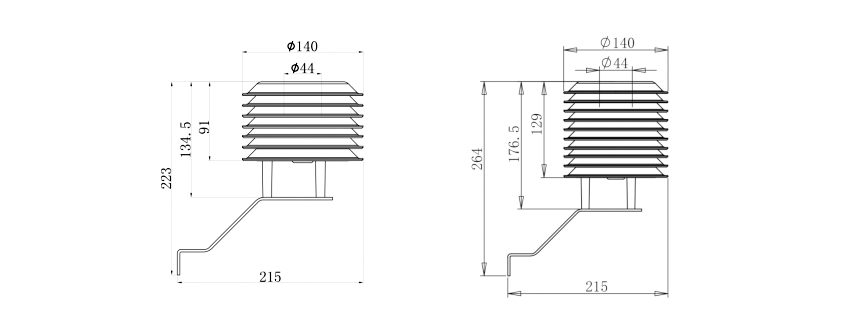

Louvered Shield Dimensions and Specifications Table
| Number of Layers | Internal Space (mm) | External Dimensions (mm) | Internal Height (mm) | External Height (mm) |
| 6-layer | 44 | 140 | 48 | 122 |
| 10-layer | 44 | 140 | 98 | 172 |
| N-layer（N＞3） | 44 | 140 | 12.5*N | 12.5*N+47 |
