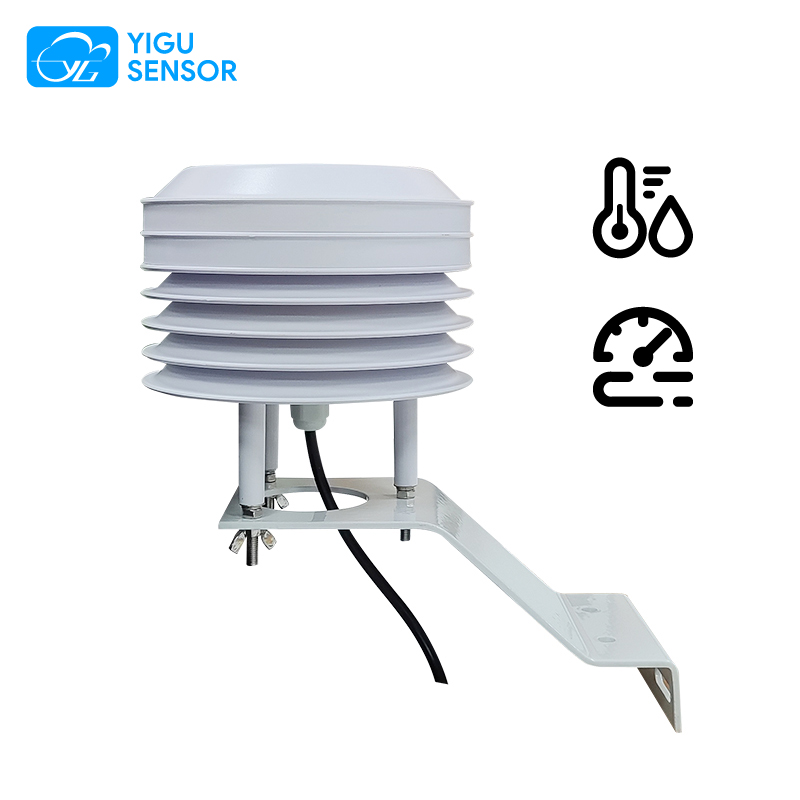

YGC-BYX-M Louvered Box Temperature, Humidity and Pressure Sensor
YGC-BYX-M louvered box sensor measures temperature, humidity, and atmospheric pressure in one unit. 7/10-layer radiation shield, RS485 Modbus output, high accuracy (±0.3°C/±5%RH). Ideal for greenhouse, meteorology, and environmental monitoring.
WhatsApp: +86 15271247832
Description
Product Introduction
The YGC-BYX-M Louvered Box Temperature, Humidity, and Pressure Sensor uses a piezoresistive silicon micromachined sensor for the atmospheric pressure part, a capacitive polymer humidity-sensitive element for the humidity sensing part, and a temperature sensor made from energy gap materials for the temperature sensing part.

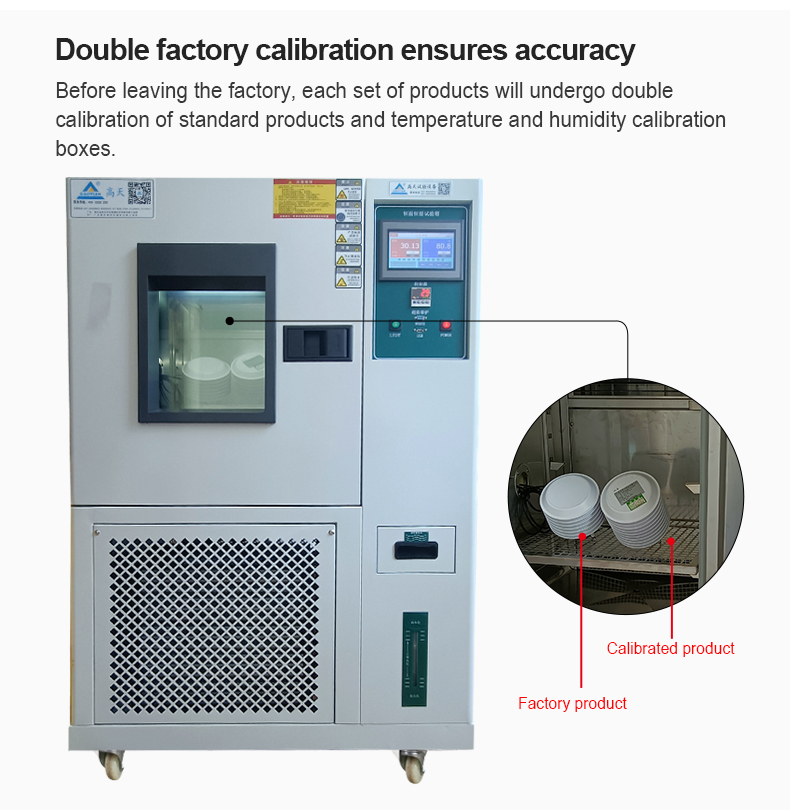

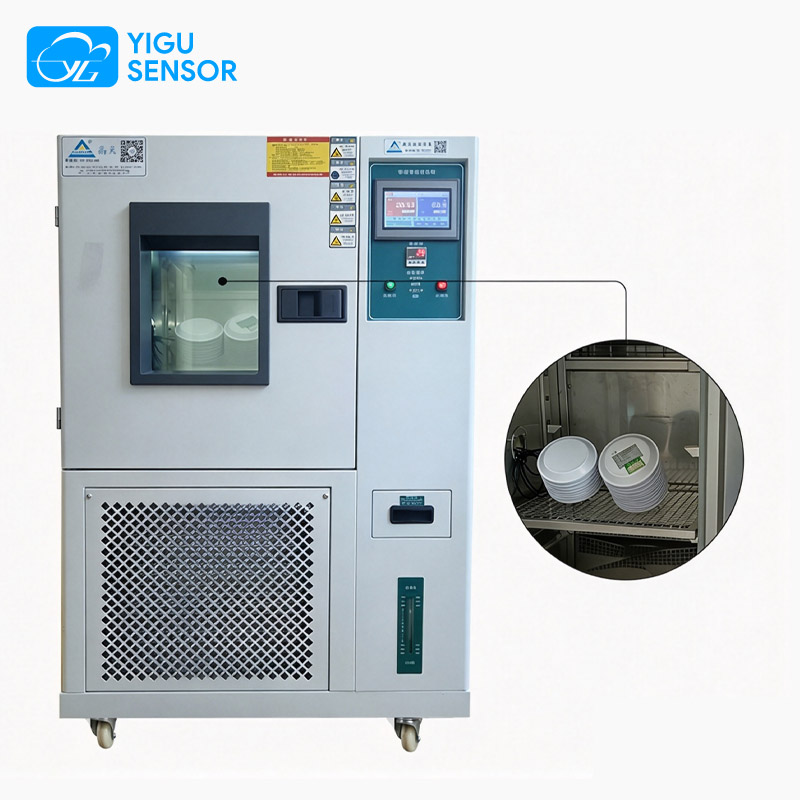

The temperature and humidity chip is calibrated across the full range. All components feature high measurement accuracy, fast response, strong anti-interference capability, and excellent stability. The signal transmitter adopts an advanced circuit integration module and uses RS485 signal output to ensure the sensor's precision is not lost.
The instrument is compact, easy to install, portable, and reliable in performance. It can be widely applied in meteorological observation, environmental control, agriculture, factories, and many other fields.
Product Features
- High integration: All sensors are integrated into one, fixed with only a few screws, making installation extremely convenient.
- Simple and beautiful appearance: This sensor is designed as an integrated unit with only one signal line, making wiring simple and convenient. The entire device has a simple and beautiful appearance.
- Sensors can be combined arbitrarily: Customers can choose various sensors according to their actual needs, which can be combined into two elements, three elements, or other multiple elements, such as temperature and humidity integrated sensors, temperature, humidity, light intensity integrated sensors, temperature, humidity, wind speed, wind direction integrated sensors, etc.

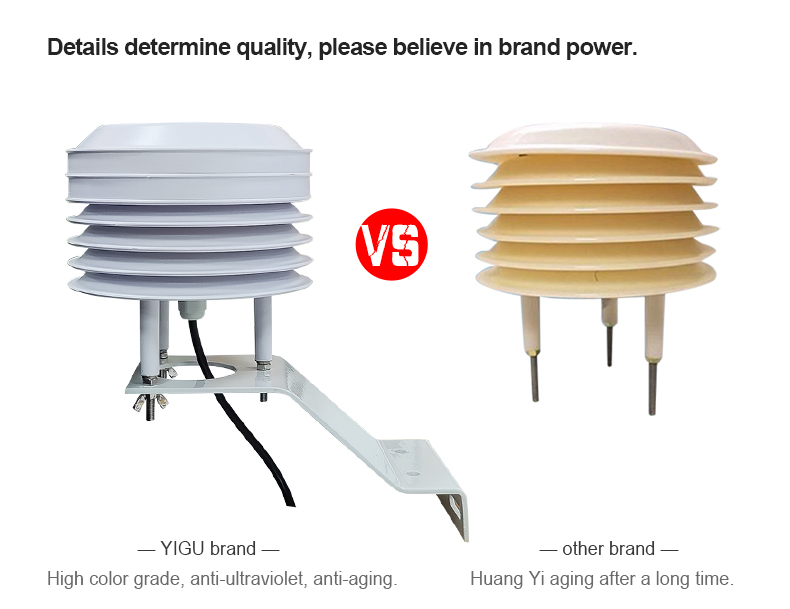

- Good product material: the shutter box plastic disc is added with anti ultraviolet and anti-aging materials, and the unique structural design makes it have the functions of high reflectivity, low thermal conductivity, and anti ultraviolet, which can be used in extreme weather conditions.
Technical Parameter
| YGC-BYX-M Louvered Box Temperature, Humidity and Pressure Sensor | |
| Measurement Range | Temperature : -40～100°C, Resolution: 0.1°C |
| Humidity : 0～100% RH, Resolution: 0.1% RH | |
| Accuracy | □ Temperature ±0.3°C, Humidity ±5% RH (standard) |
| □ Temperature ±0.2°C, Humidity ±3% RH | |
| Louvered Box Layers | □ 7 layers |
| □ 10 layers | |
| Power Supply | □ DC 5V |
| □ DC 9-30V | |
| □ Others (Customizable) | |
| Output singal | □ RS485（Default Modbus □ASCII） |
| □ RS232（Default Modbus □ASCII） | |
| Cable Length | □ Standard: 2 m |
| □ Others (Customizable) | |
| 💡Note: □ indicates an optional item. | |
Product Features

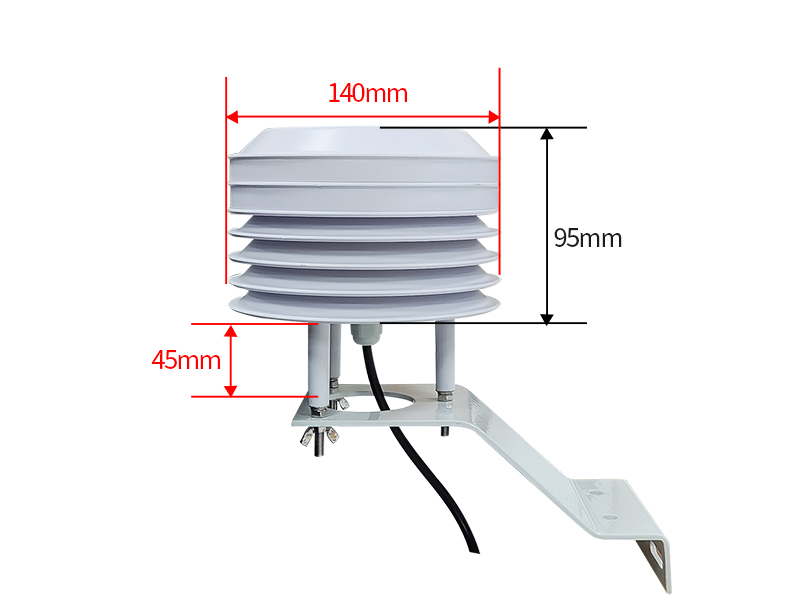

Product Dimensions
