Product Introduction
The YGC-BG-M Wall-Mounted Multi-in-One Sensor is an integrated device designed to measure environmental factors such as illuminance, temperature, humidity, and CO₂. This sensor features a high-protection-grade enclosure with an IP65 rating, providing excellent resistance to rain and snow while maintaining good breathability. The product utilizes an industrial-grade microprocessor chip imported from the USA and a high-precision temperature and humidity chip imported from Switzerland, ensuring outstanding reliability, high accuracy, and interchangeability. The sensor supports RS485/RS232 output interfaces and the standard Modbus protocol, enabling easy connection with other data collection devices for data acquisition. Additionally, the device can output up to four analog signals (current and voltage outputs). The digital signal output uses the standard Modbus or ASCII protocol and supports secondary development. It is stable, reliable, and easy to install.
Product Features
1、Adopts high-quality temperature and humidity probes and transmitter housing, waterproof and dustproof, resistant to condensation, and reaching IP65 protection level.
2、Core components use imported chips with high accuracy and good stability.
3、The communication part adopts a dedicated RS485 circuit for stable communication.
4、The circuit adopts a modular design, making it compact and lightweight.
5、Supports a wide voltage range for power supply, with multiple signal output options, and is easy to install.
6、Customers can select various sensors according to actual needs and combine them into single-element, two-element, three-element, or four-element sensors, such as: Temperature andhumidity two-element integrated sensor; Temperature, humidity, and illuminance three-element integrated sensor.
7、Customers can select suitable temperature and humidity probes according to the product’s usage environment to meet special requirements, such as: High-temperature environments; High-dust environments; Outdoor rain and snow environments.
Element Options and Technical Specifications
|
Measurement Element |
Range |
Accuracy |
Resolution |
Power Consumption |
||
|
□ Illuminance |
□ 0~200000Lux □ 0~65535Lux |
±4% |
1 Lux |
0.1mW 0.4mW |
||
|
□ Atmospheric Temperature |
-20~50℃ (Analog Signal Output) |
±0.3℃（Standard） ±0.2℃（High Precision） |
0.1℃ |
1mW |
||
|
-40~100℃ （Digital Signal Output） |
||||||
|
□ Atmospheric Humidity |
0~100%RH |
±5%RH（Standard） ±3%RH（High Precision） |
0.1%RH |
|||
|
□ CO2 |
0~5000ppm |
±（50ppm+5%） |
1ppm |
85mW |
||
|
Power Supply Options |
□ DC5V □ DC9-30V □ Other |
|||||
|
Output Options |
□ 4-20mA □ 0-20mA □ 0-5V □ 0-10V □ 0-2.5V □ 1-5V |
|||||
|
□ RS485（Modbus-RTU） □ RS232（Modbus-RTU） □ RS485（ASCII Proprietary Protocol） □ RS232（ASCII Proprietary Protocol） |
||||||
|
Cable Length |
□ Standard 2 meters |
□ Other |
||||
|
Probe Types |
Built-In Probes |
□ Standard Built-In Probe |
Suitable for most scenarios, waterproof but not dustproof. |
|||
|
□ PE Built-In Probe |
Resistant to condensation, waterproof, and dustproof. |
|||||
|
□ Metal Built-In Probe |
Suitable for high-dust environments, waterproof, dustproof, and highly sensitive. |
|||||
|
External Probes |
□ Standard External Probe |
Suitable for most scenarios, waterproof but not dustproof. |
||||
|
□ PE External Probe |
Resistant to condensation, waterproof, and dustproof. |
|||||
|
□ Metal External Probe |
Suitable for high-dust environments, waterproof, dustproof, highly sensitive, and capable of withstanding high temperatures. |
|||||
|
□ External 4-Point Threaded Probe |
Designed for measuring the environment inside containers with matching threads. |
|||||
|
Load Capacity |
500Ω (12V power supply) |
Protection Level |
IP65 |
|||
|
Operating Environment |
-40℃~+75℃ |
Net Weight |
|
|||
|

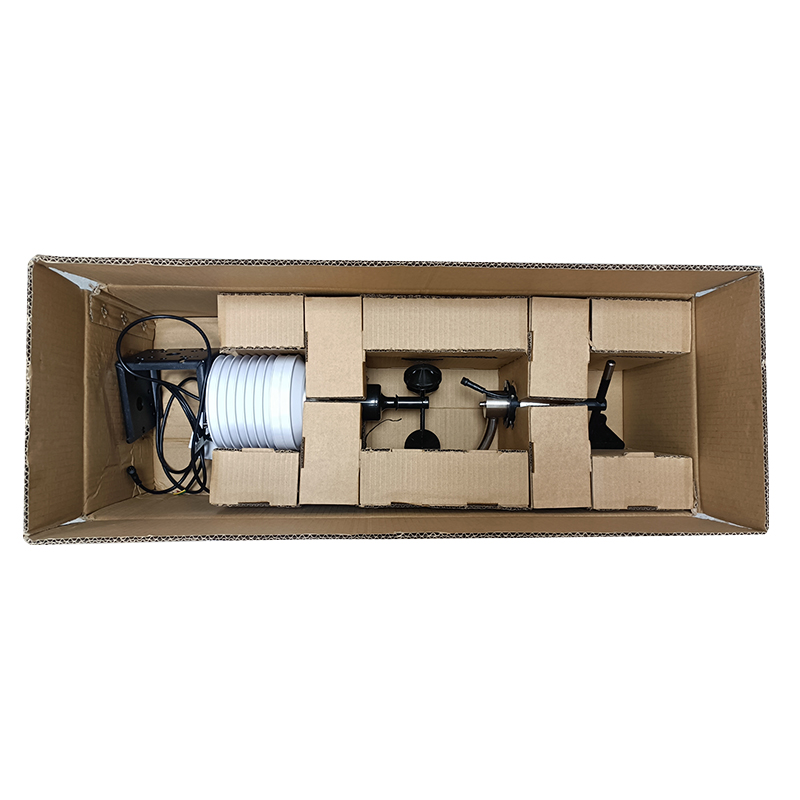

Shipping List |
Product Certificate of Conformity: 1 copy Product Manual and Installation Accessories: 1 set Wall-Mounted Multi-in-One Sensor: 1 unit |
|||||
